High Quality CNC Brake Foot Press CurvingBendingFolding Machine

Short Description:

Formed Material:Thickness:0.3-0.8 mm

Diameter of shaft:70mm solid shaft

Machine body frame:350H steel

Control system:PLC

Forming Speed:3-8m / min

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

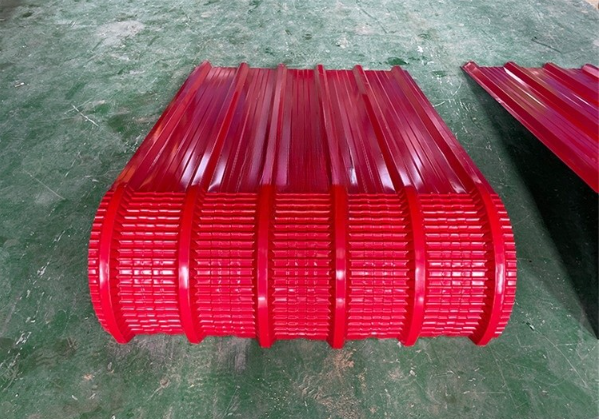

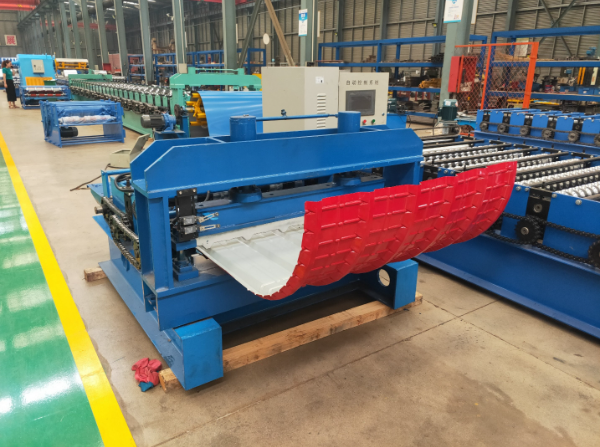

Hydraulic roof sheet curving machine

Horizontal automatic crimping machine can curve to your want shape and length automatically. Speed about 3-8 m/min, material use PPGI material thickness between 0.3-0.8 mm, machine details is like up type.

Part details	Item Name	Specification
Material	Raw material	Color steel
Material	Thickness	0.3-0.8 mm
Machine	Roller station	3
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 1.8×1.4×1.7 m
	Machine weight	About 1.2 ton
	Machine color	As customer' request
	Working speed	3-8 m/min
Power	Driving way	Chain 1 inch
	Main power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.

Vertical curve machine

Vertical automatic crimping machine can curve to your want shape and length automatically. Speed about 3-8 m/min, material use PPGI material thickness between 0.3-0.8 mm, machine details is like up type.

Bending machine

Hydraulic bending machine control by foot, it can bend many degree, more flexible and easy operate. Price cheap, bending machine width common include 2m, 4m, 6m and 8m, material use PPGI or GI material, thickness between 0.3-0.8 mm, machine details is like up type.
