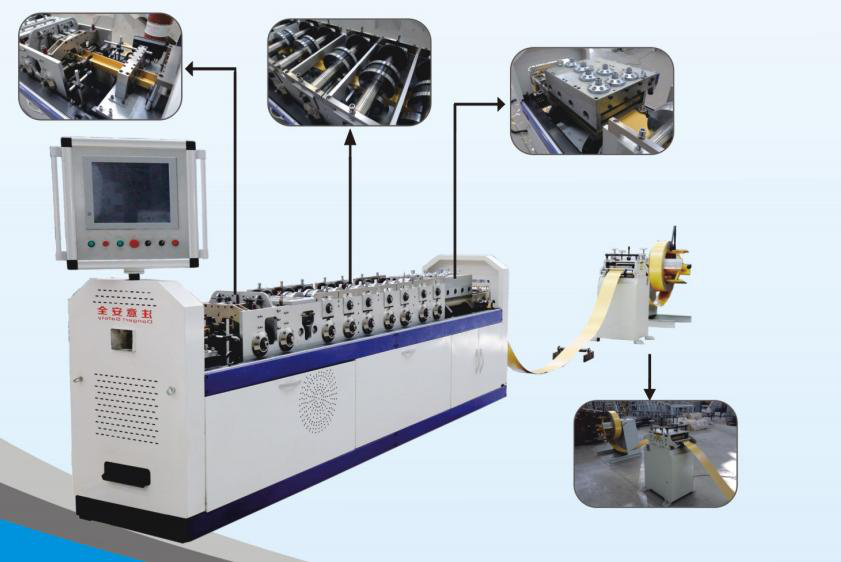

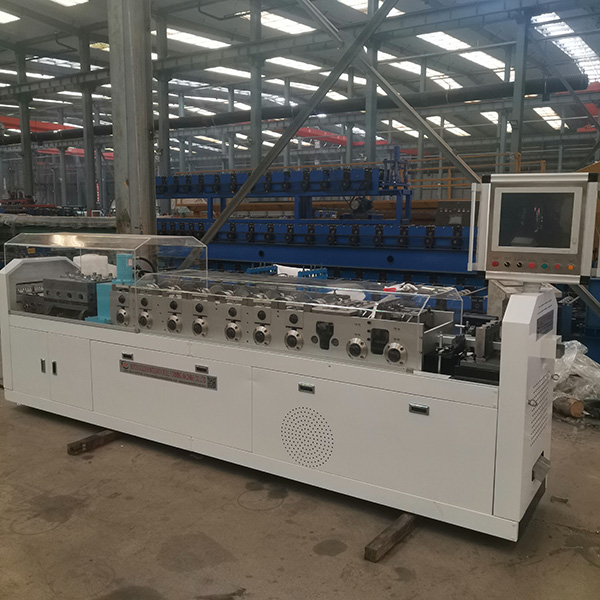

Light Steel Keel Forming Machine

Short Description:

Zhongke Roll Forming Machine Co.,Ltd

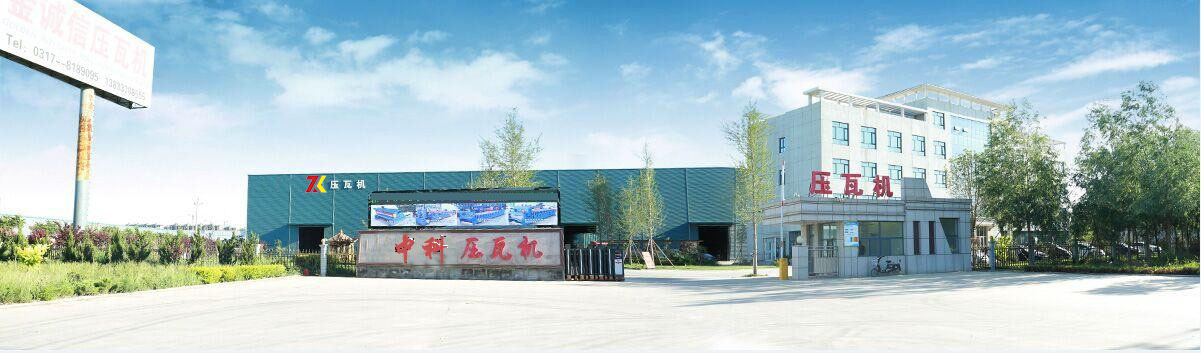

Zhongke roll forming machine factory is located in the hometown of Chinese machinery, casting city – Botou city.Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m’(square meters) workshops.
Specializing in the production of various types of tile press equipment,the development and production of automatic intelligentcontrol tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.

Product Detail

Product Tags

Product Description

ASDA (2)

Professional technical personnel

ASDA (3)

Reliable brand

ASDA (4)

High quality machine

ASDA (5)
ASDA (6)
ASDA (7)
ASDA (8)


ASDA (10)




ASDA (12)
ASDA (13)

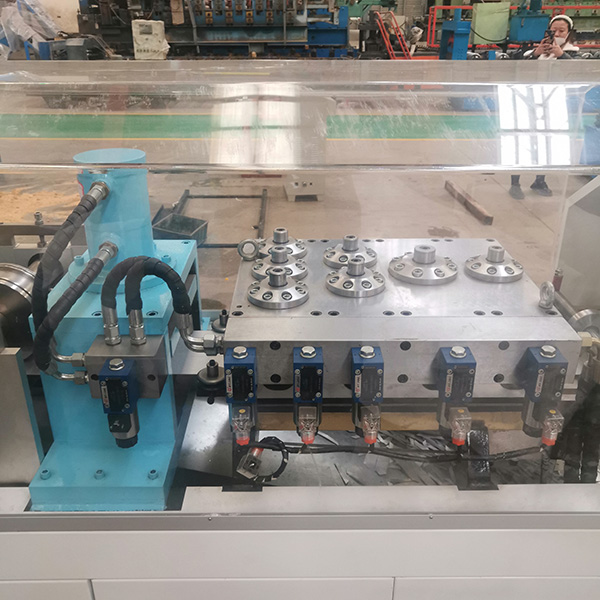

ASDA (14)
ASDA (15)

Essential details

Profile Size 89 x 41 MM
Material Thickness 0.75 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated )
Material Width 180MM
Design Software Vertex BD
Profile Type 1*C shape, 1*U Shape
Production control software Windows
Maximum Line Velocity 30 M / Min
General Production Efficiency 3 - 12 M /Min
Decoiler Auto with Servo Motor ; Power - 1.5 Kw ; Max load 2 Tons ;
Main Unit Power 7.5 Kw
Hydraulic Power 5.5 KW
Equipment Total Power 14 Kw
Hydraulic Cylinder Volumn 100L
Main Unit Remote Control Standard
Product Accuracy 0.5MM
Machine Size 4000 x 800 x 1200 MM
Machine Weight 2000 Kgs ---3000Kgs
Capacity Of Auto Decoiler 3Ton


ASDA (17)

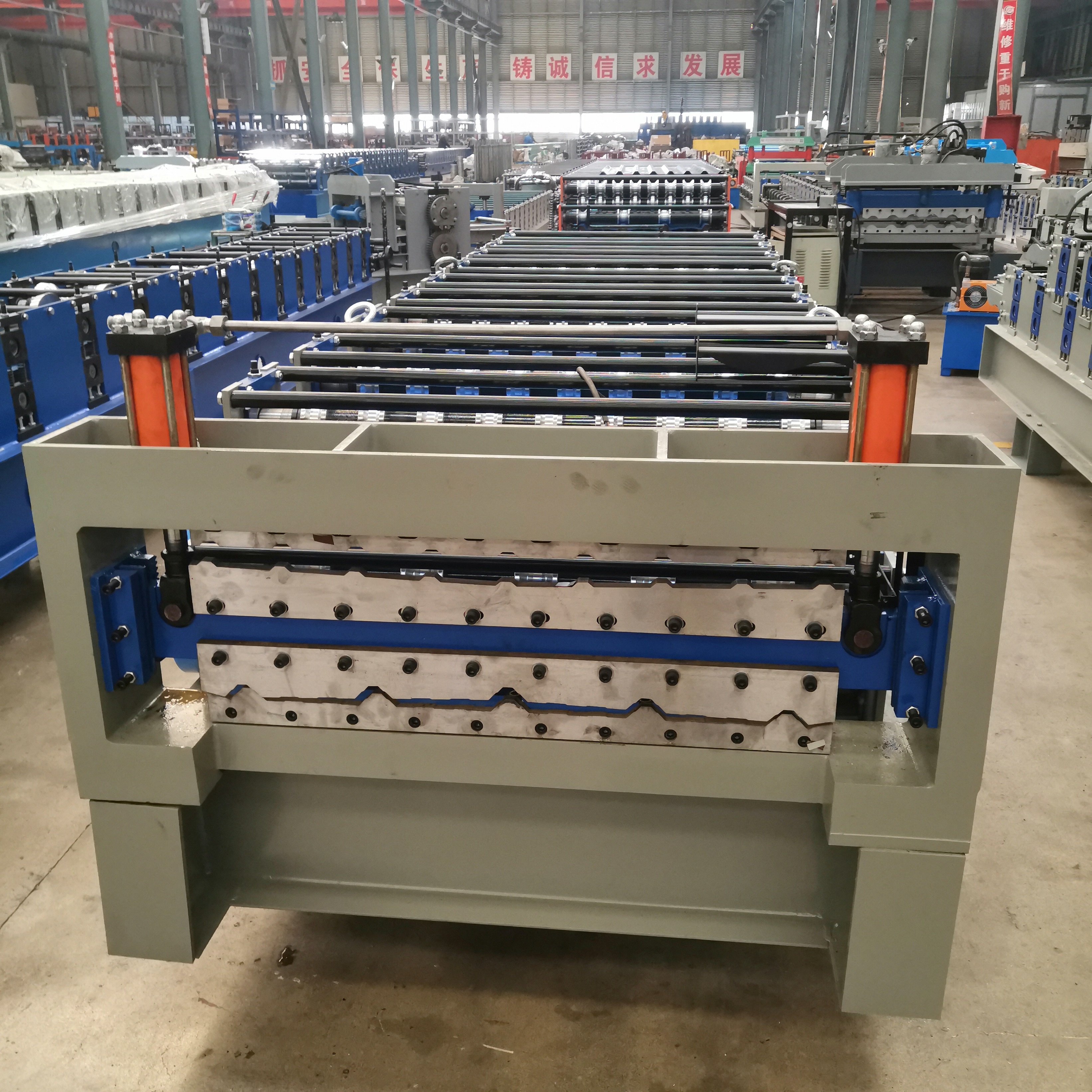

ASDA (18)

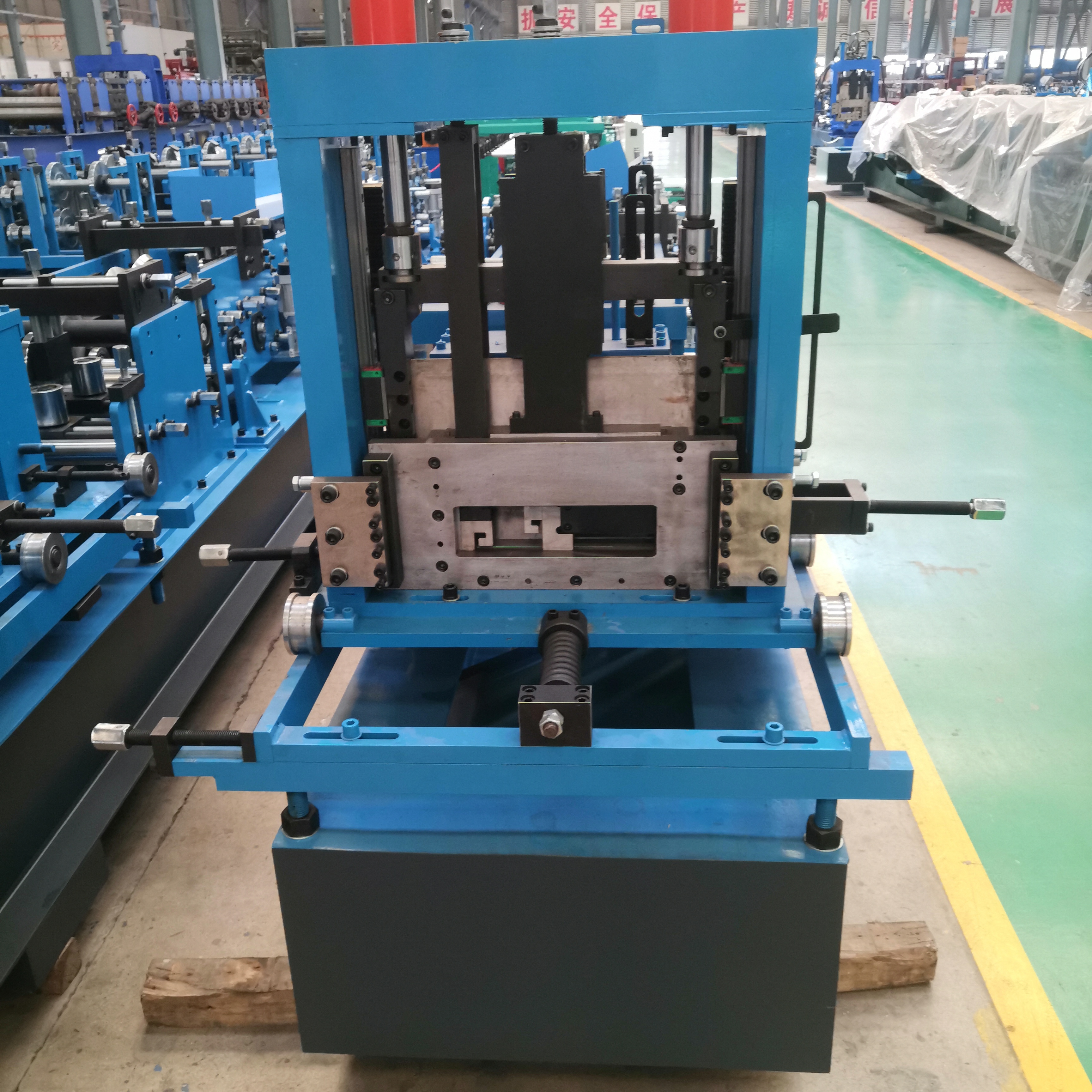

ASDA (19)
ASDA (20)
ASDA (21)


ASDA (22)
ASDA (23)
ASDA (24)

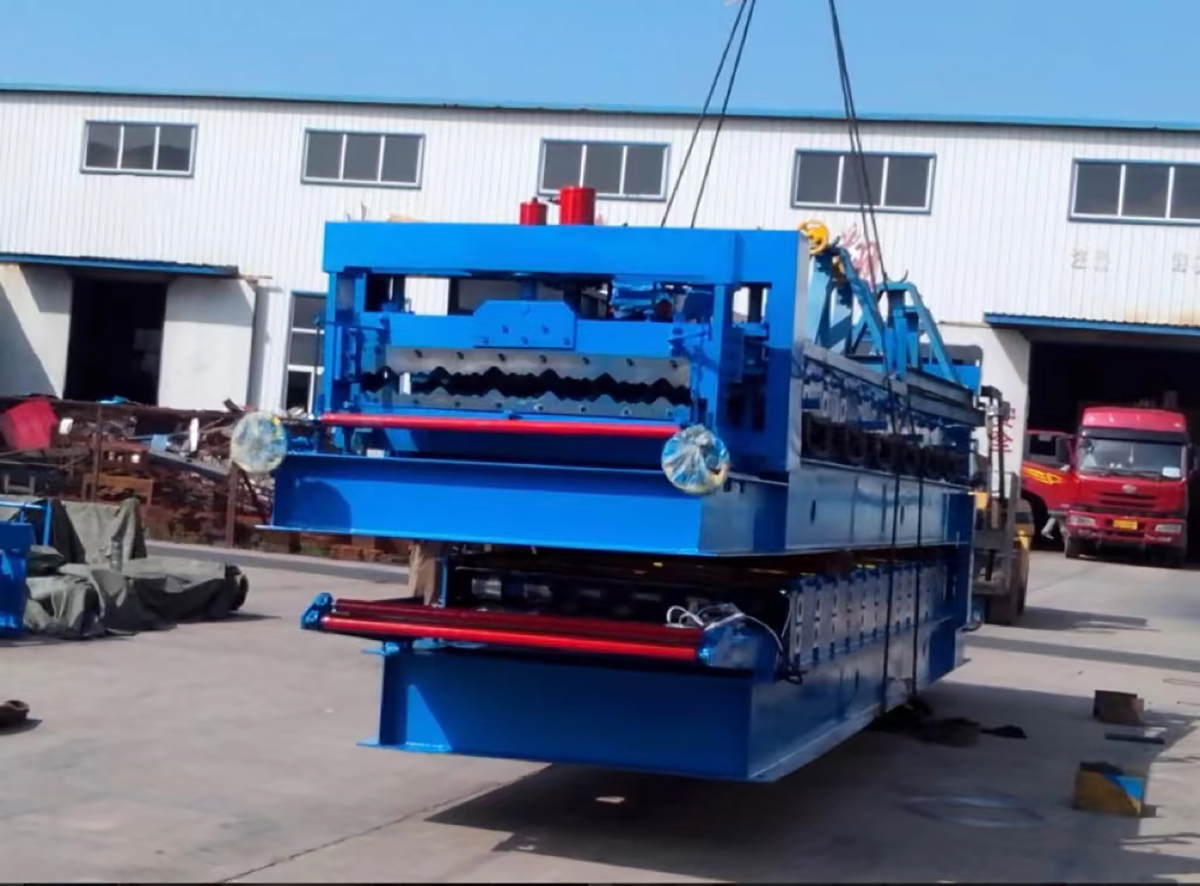

ASDA (25)

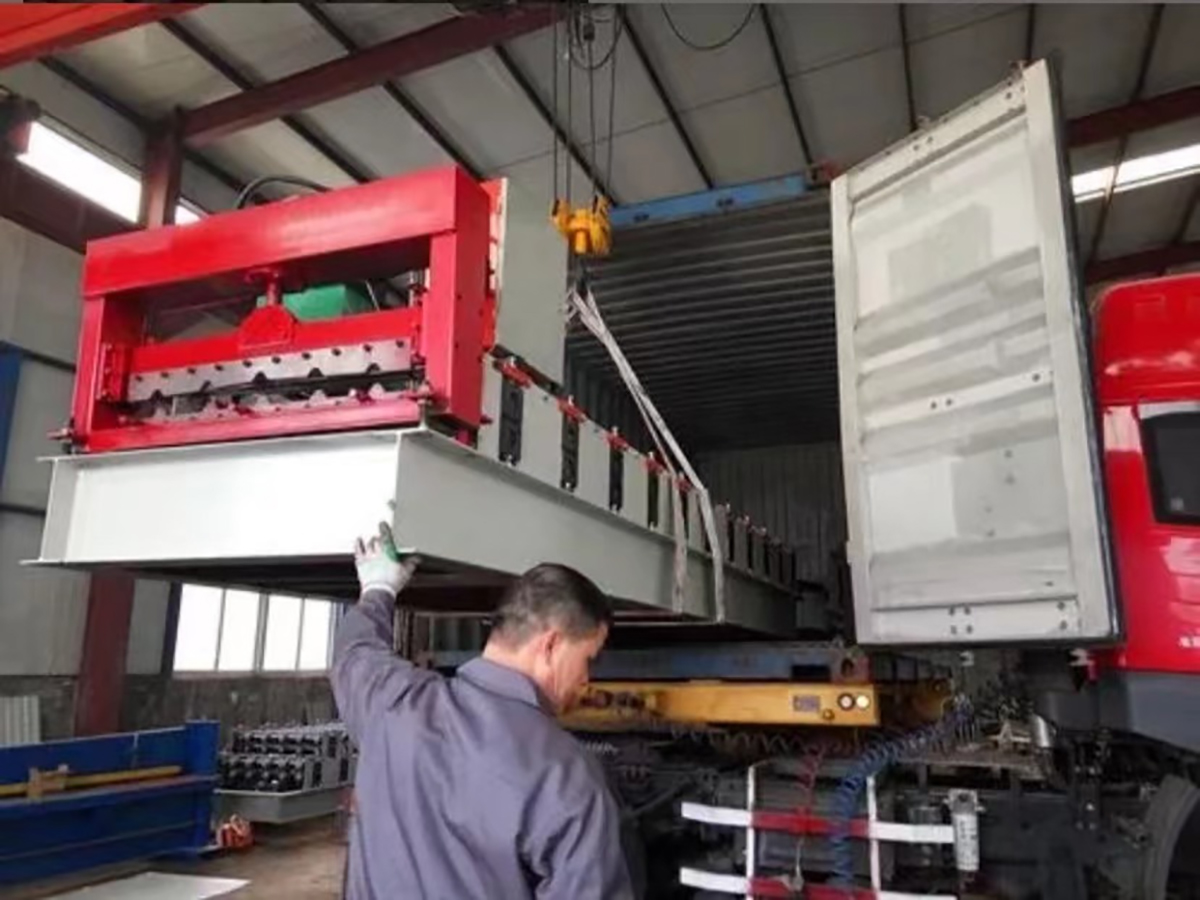

ASDA (26)


Q1:How to play order?
A1Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok

Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.

Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .

Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.

Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.

Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory

Q8: Do you sell only standard machines?
A8: No. Most machines are customized.

Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
