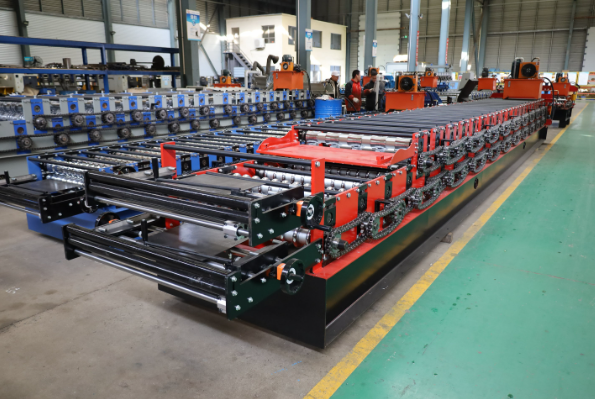

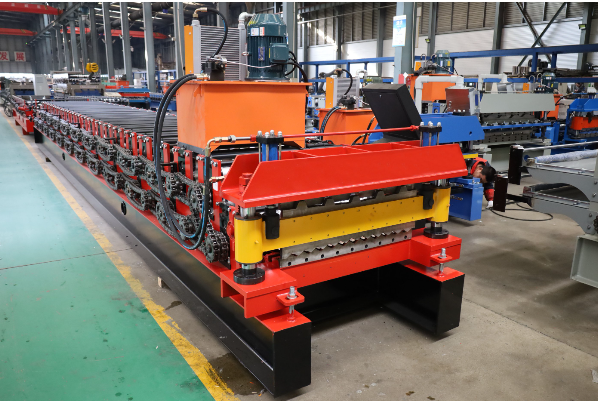

Double Layer Roll Forming Machine
| Formed Material | PPGI,GI,AI | Thickness:0.3-0.7 mm |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| Main body | Roller station | 10 rows(As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | cgr15, hard chrome plated on the surface | |
| Machine body frame | 350H steel | |
| Drive | Double Chain transmission | |
| Dimension(L*W*H) | About 6*1.0*1.4 m | |
| Weight | About 3 ton | |
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | 5.5KW or As your requirement |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 12-18m / min | The speed depends on the shape of the tile and the thickness of the material. |
Square Tube Feed Platform
The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.
1 inch chain
The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.
