850 corrugated roof sheet roll forming machine

Short Description:

corrugated roof sheet press making machine
1.Light weight,environmenttal protection and economical
2.Durability and life-long used with high efficiency
3.Easy installed and operate
4.Nice appearance and fashion windproof

Product Detail

Product Tags

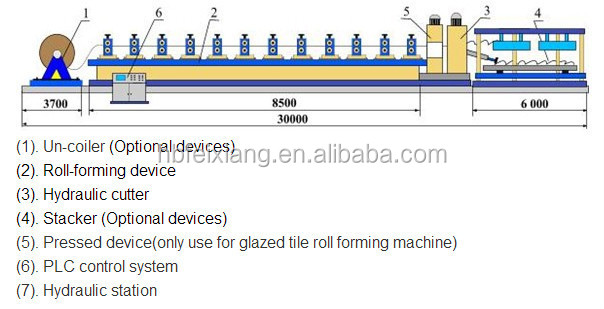

Working flow chart

corrugated roof sheet press making machine
Manual decoiler→ Feeding material into machine→Roll forming machine→Measure  length→Hydraulic cutting→Finished Products

FX850 corrugated roof sheet press (2)


a.What the main forming machine will be???→as below

b.How to cut to shape??→By hydraulic

Hydraulic system Type of cutting Hydraulic
Cutting motion stop cutting
Cutting tolerance ±1mm
Cutter Cr12
Cutter quantity 1 set
Working pressure 15-20MPA
Hydraulic oil 46#
Hydraulic oil weight 50-100KGS
Hydraulic power 4kw
Cutting length As required
No distorting or wasting. High level safety factor.

c.Can we cut to length and set quantity??→PLC control can do it!

Control Device control By PLC
  PLC language English and Chinese (or as required)
  Brand Delta from Taiwan
  PLC screen Touch screen or text screen
  Coder ENC-1-1-1T-24 from South Korea
  Function Automatic length and quantity measurement,

d.How can we guarantee your smooth use?? →Strict quality test!

Related Products

FX850 corrugated roof sheet press (1)

Packaging & Shipping

Package of corrugated roof sheet press making machine
1 .Main forming machine and un-coiler is naked.
2 .Tighten to container with steel wirerope and welded machine with container by angel iron.
3 .PLC system and motor can be packed in waterproof plastic coverage if needed and necessary.

Company Information

HeBei Feixiang Roll Forming Machinery Co.,Ltd
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
