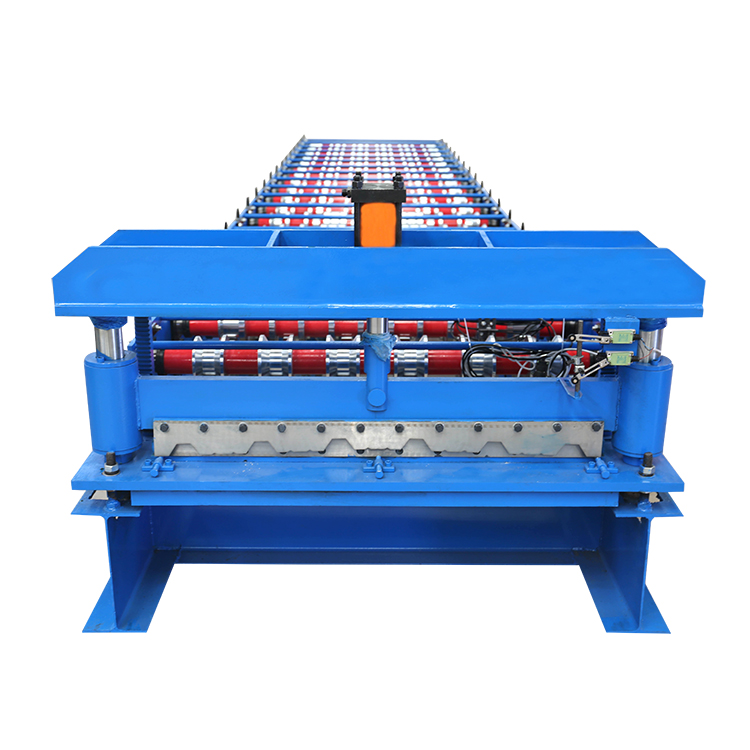

ZKRFM Trapezoidal Roof Tile Making Machine Trapezoidal Sheet Machine

Short Description:

The trapezoidal roof tile forming machine is used to manufacture roof tiles. It is easy to operate and highly efficient, and is suitable for the construction industry.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	11rows(As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Double Chain transmission
	Dimension(LWH)	6X1.4X1.5M
	Weight	8T
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	20KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-25m/min	The speed depends on the shape of the tile and the thickness of the material.

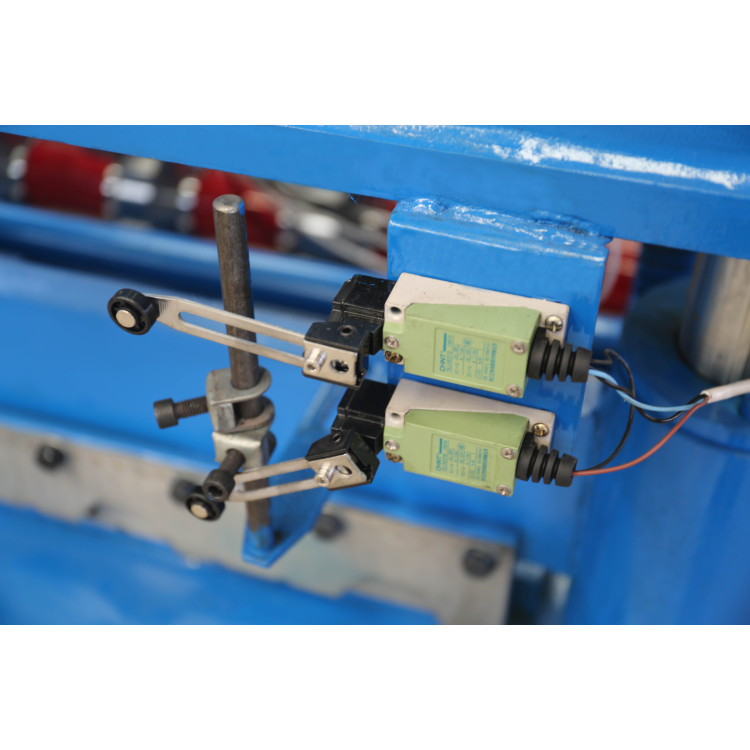

Travel switch

The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.

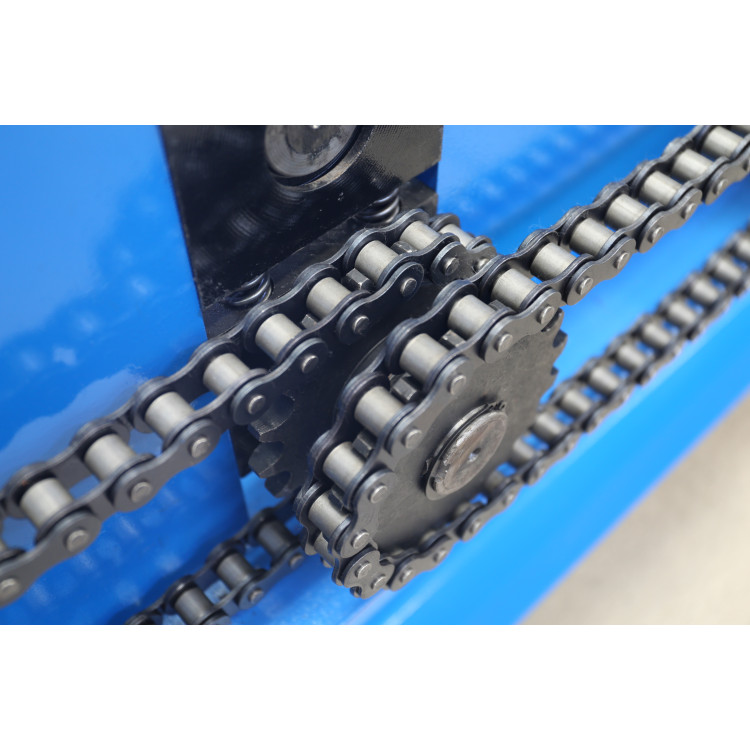

1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.

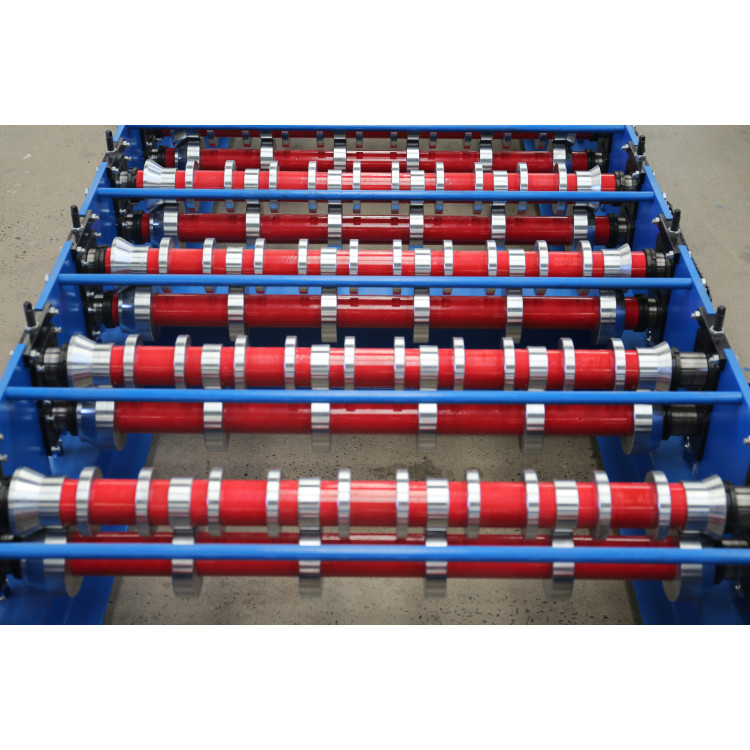

Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

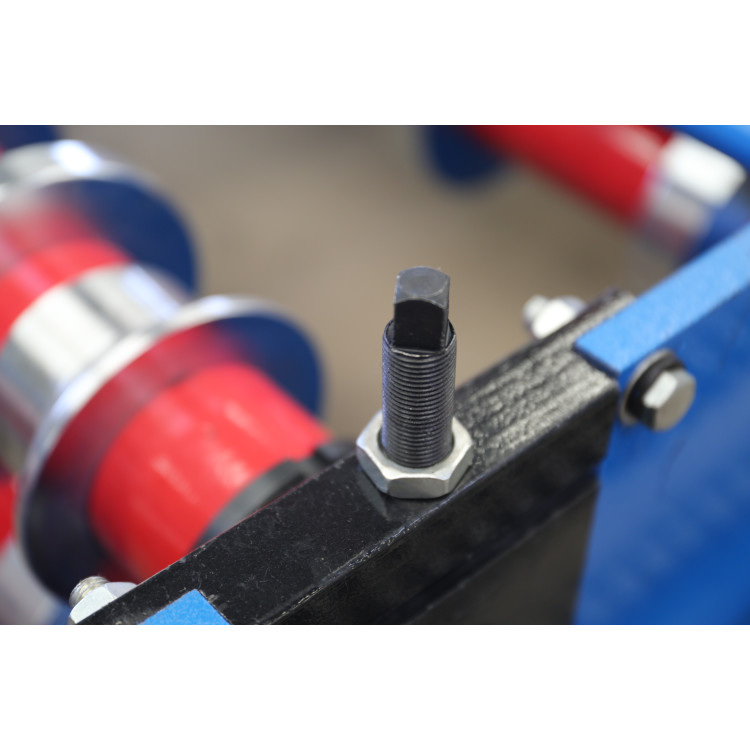

High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

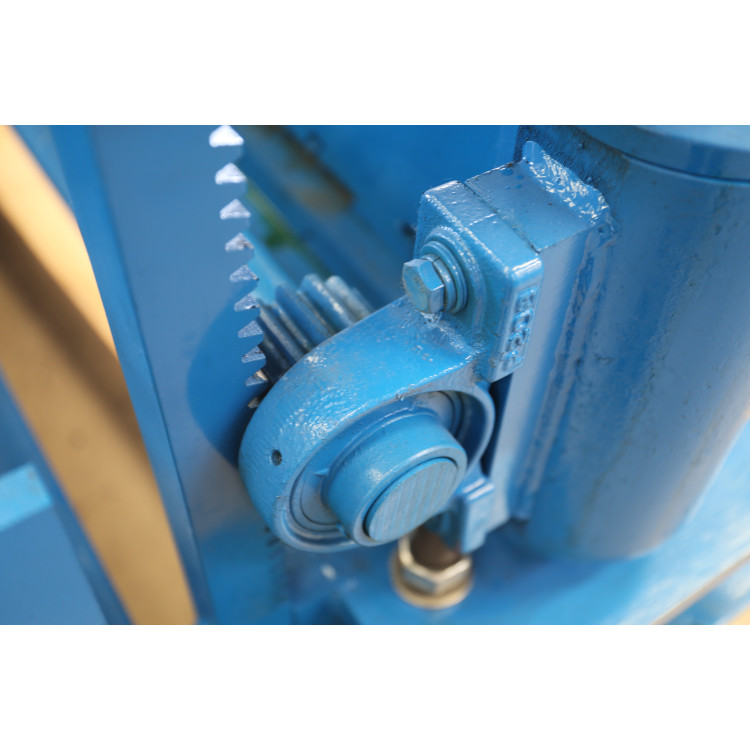

Gear and rack and rod combination

The combination of gears, rashes and rods in our roll forming machines ensures precise and synchronized movement, giving the machine greater stability and balance in shearing
