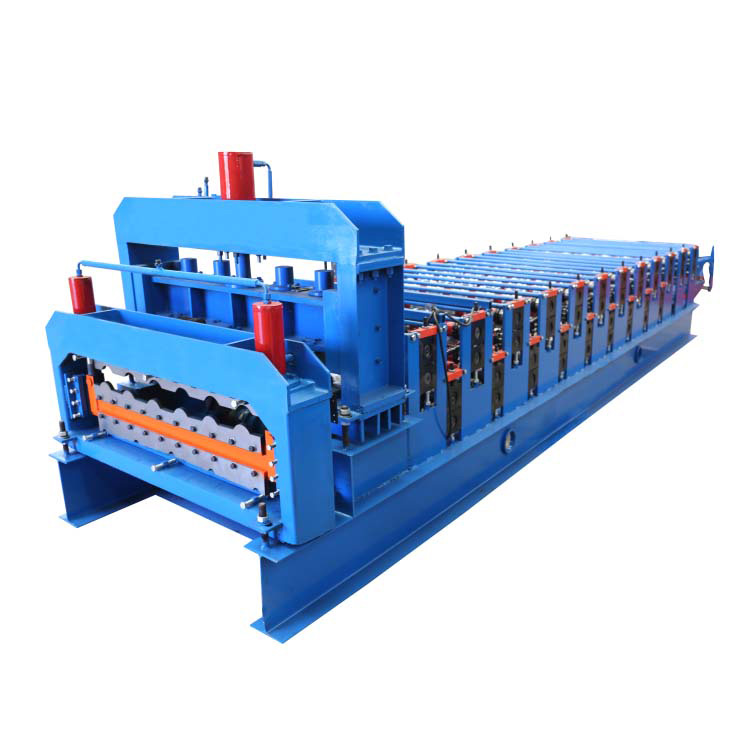

ZKRFM Double Roll Form Machine Glazed Tile Making Machine Galvanized Steel Roofing Sheet Press Machine

Short Description:

Double-layer roll forming machines are used to produce double-layer roof panels or wall panels quickly and efficiently, and are suitable for panels of different shapes and sizes.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8 mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	18rows(As your requirement)
	Diameter of shaft	75mm solid shaft
	Material of rollers	45#, hard chrome plated on the surface
	Machine body frame	300H steel
	Drive	Double Chain transmission
	Dimension(LWH)	About 6X1.3X1.5
	Weight	About 5ton
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	7.5*2KW or As your requirement
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-15m/min	The speed depends on the shape of the tile and the thickness of the material.

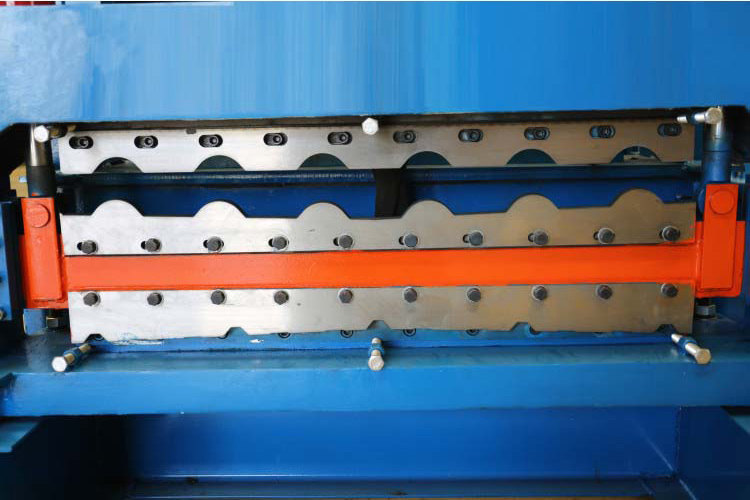

Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

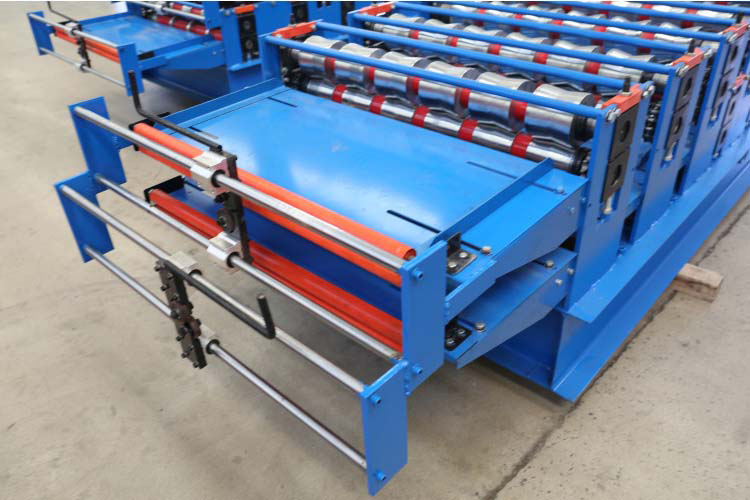

Hand wheel feed platform

The Hand Wheel Feed Platform is an essential component of our roll forming machine, allowing users precise control over material feeding, ensuring accurate and efficient production processes.

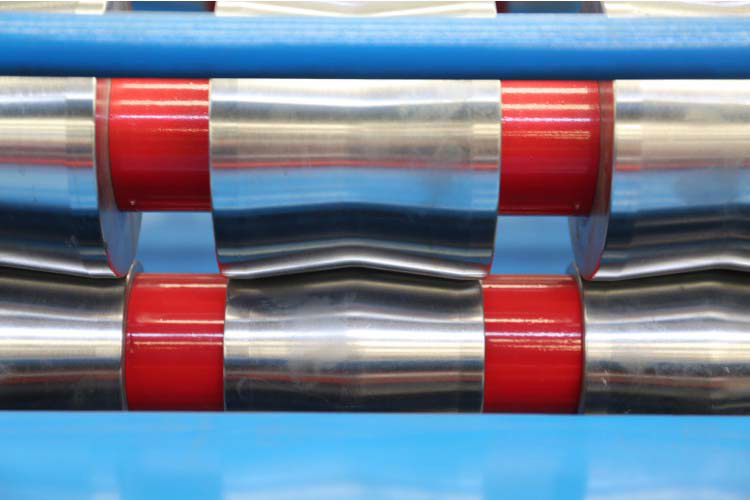

Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

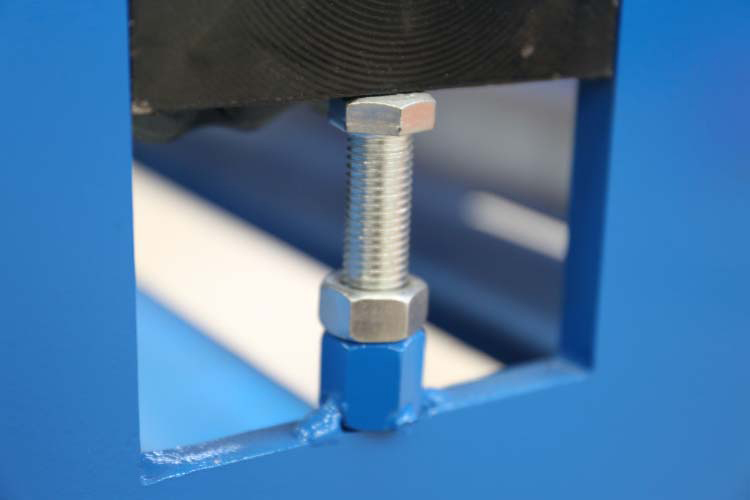

High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

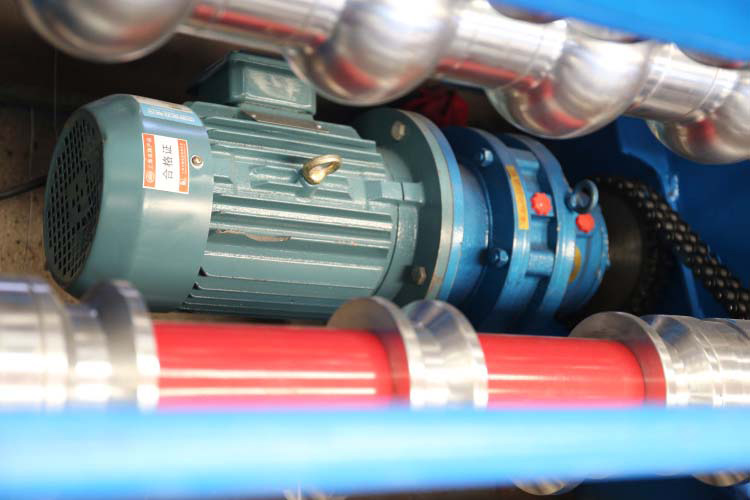

Electric machine

The Electric Machine is an integral component of our roll forming machine, providing precise and efficient power to shape and transform materials, ensuring accuracy and consistency in the manufacturing process.

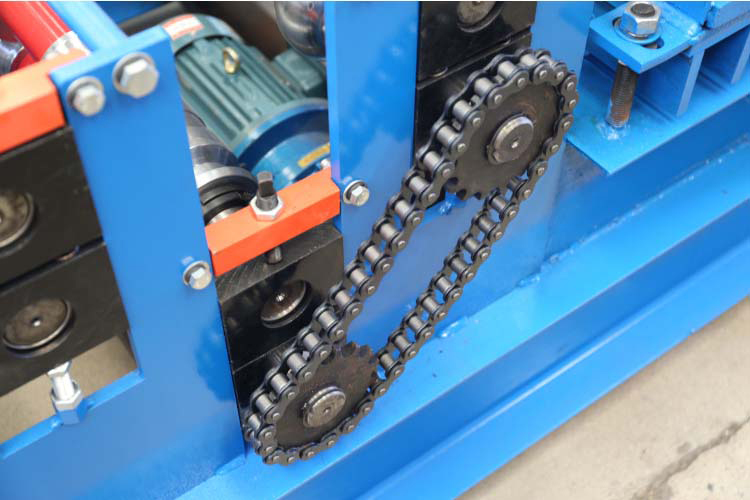

1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust
design and reliability guarantee consistent production quality.
