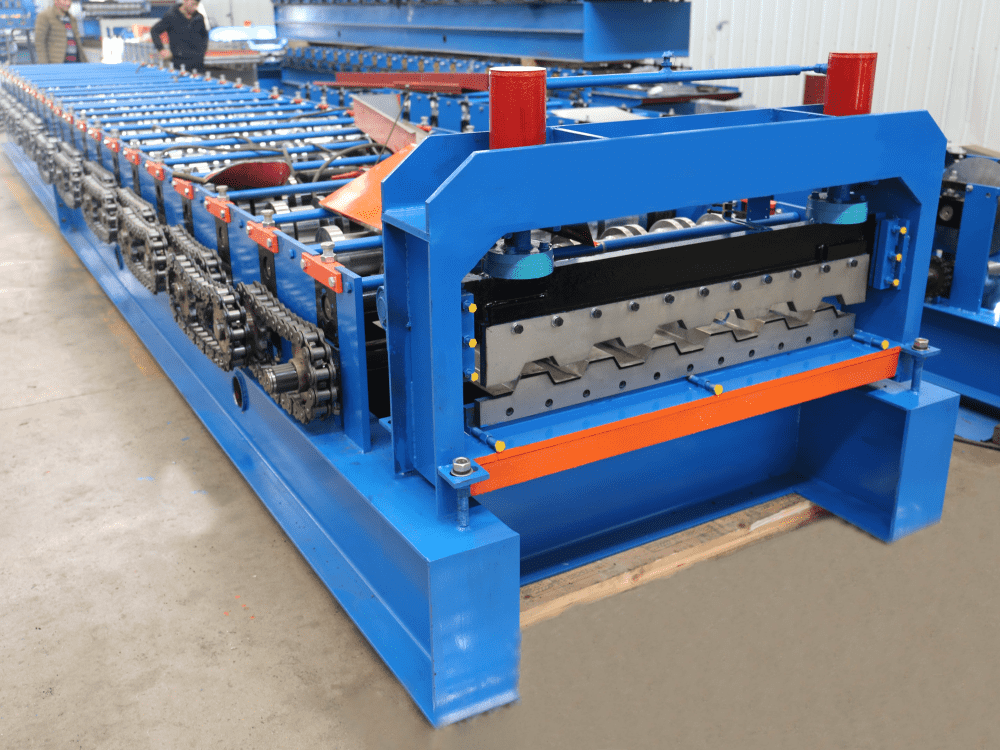

Car Panel Roll Forming Machine Car Body Panels Forming Stamping Machine

Short Description:

Formed Material：PPGI,GI,AI
Decoiler：Hydraulic decoiler
Main body：Roller station，Diameter of shaft，Material of rollers，Machine body frame
Forming Speed：8-15 m/min
Control system：PLC
Support customization
Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

Product descriptions from the supplier

Overview

PRODUCT DESCRIPTION of Purlin corner molding equipment

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	13rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	400 H steel
	Drive	Double Chain transmission
	Dimension(LWH)	7800 * 1500* 1600mm
	Weight	4.5T
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	4KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	8-15 m/min	The speed depends on the shape of the tile and the thickness of the material.

	Electrohydraulic cut-off of car Panel Roll Forming Machine The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.
1 inch chain of car Panel Roll Forming MachineThe 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.
	High strength top screws of car Panel Roll Forming MachineHigh-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

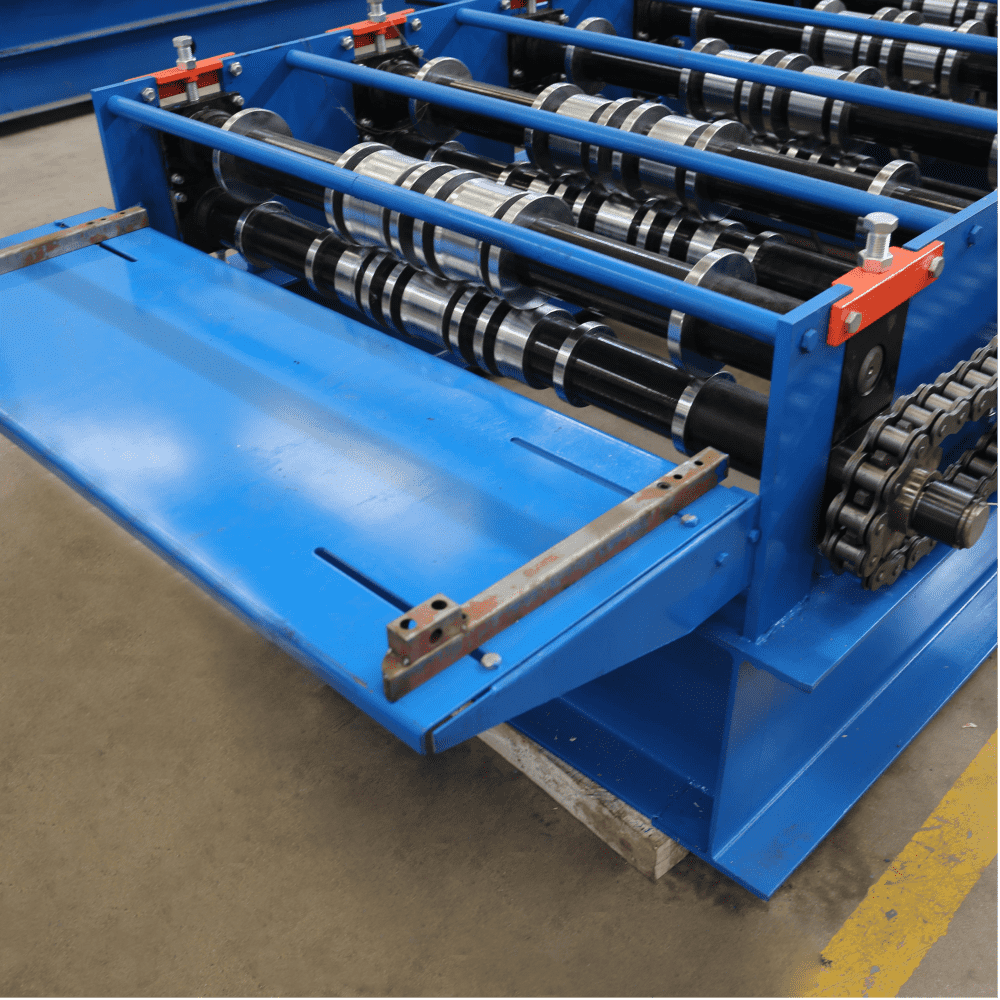

Square Tube Feed Platform of car Panel Roll Forming MachineThe Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.
	Gear and rack and rod combination of car Panel Roll Forming Machine The combination of gears, rashes and rods in our roll forming machines ensures precise and synchronized movement, giving the machine greater stability and balance in shearing

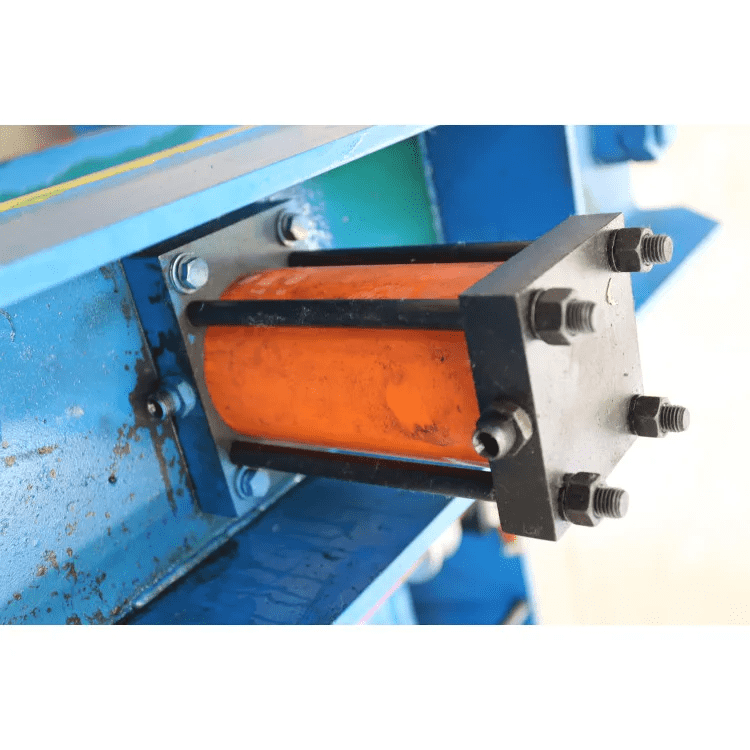

Cylinder protection of car Panel Roll Forming Machine Cylinder protection is a crucial component of our roll forming machine, ensuring the durability and longevity of the equipment. It safeguards the precision-engineered cylinders, enhancing performance and minimizing maintenance costs.

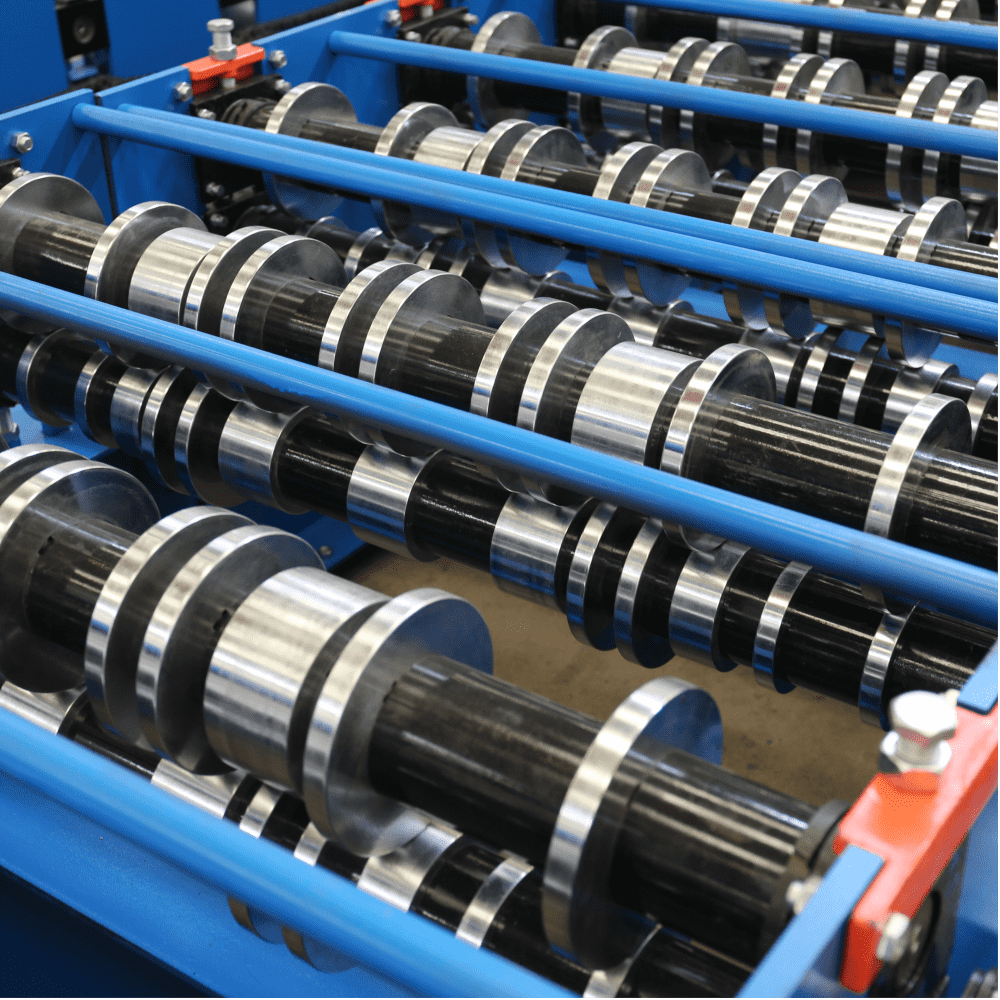

	Chrome treated shaft and wheel of car Panel Roll Forming MachineThe Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.
Travel switch of car Panel Roll Forming MachineThe Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.

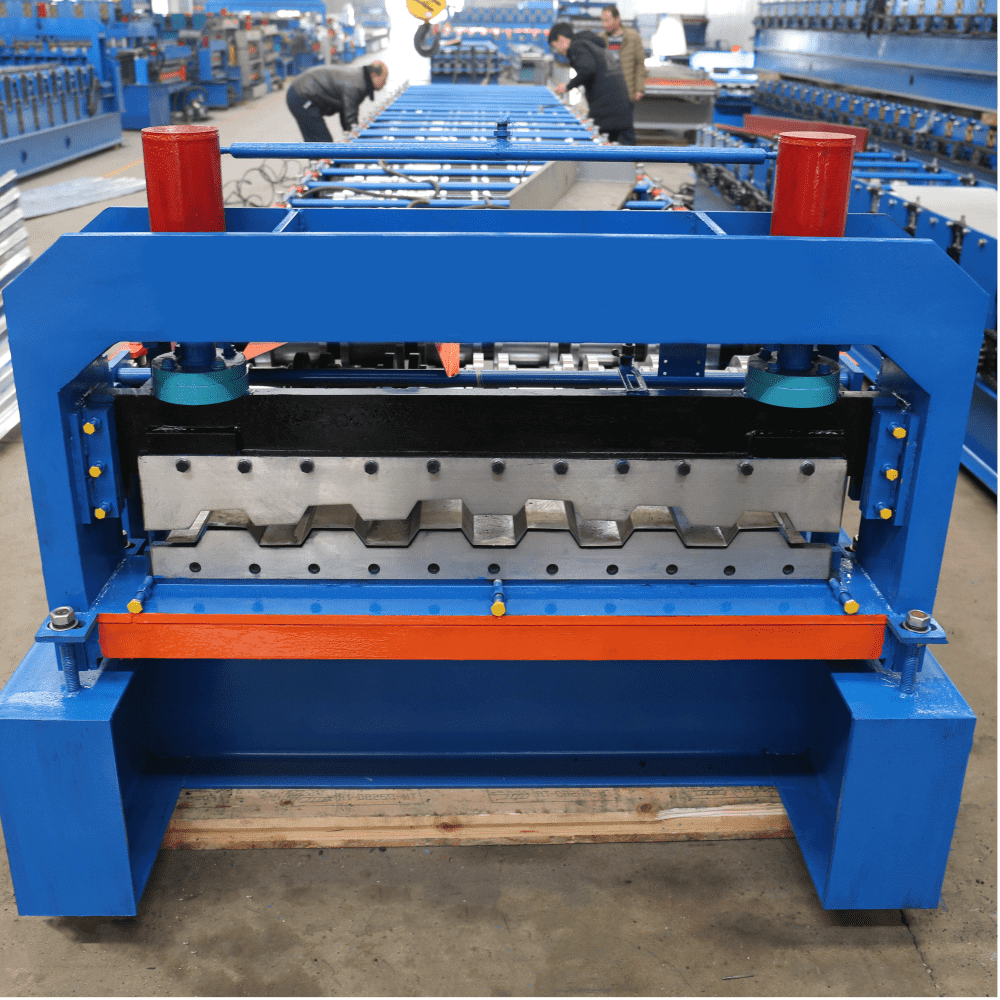

	Guide post cutting head of car Panel Roll Forming MachineThe Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.

COMPANY INTRODUCTION

PRODUCT LINE of 700 Large Wave Glazed Tile Forming Machine

OUR CUSTOMERS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
