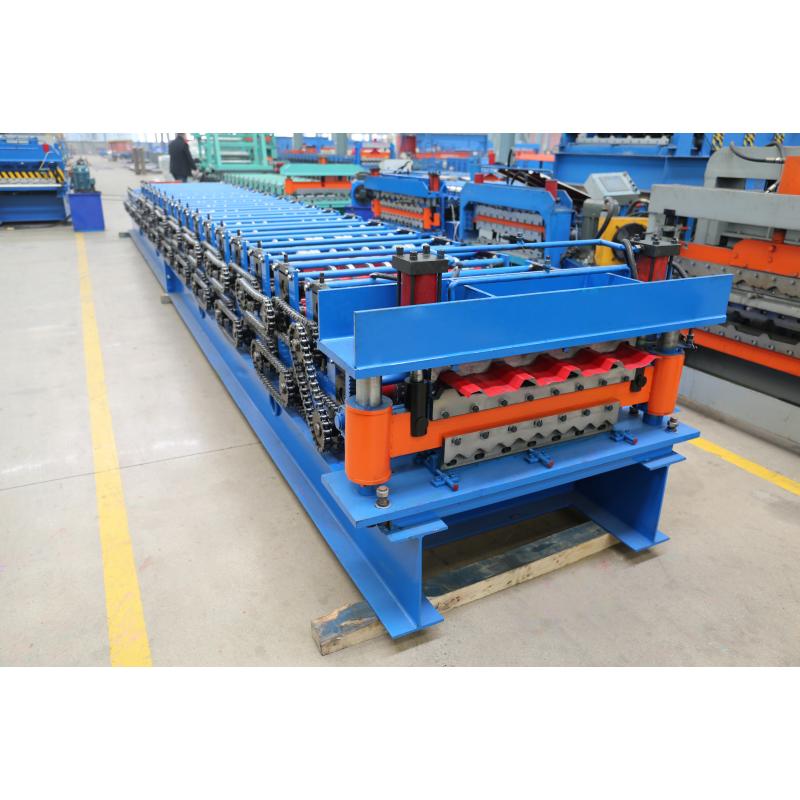

Double Layer Roof Tile Making Machine Roofing Tile Forming Machine

Short Description:

Double layers roll forming machine can effectively save labor and costs Support customization

Any inquiries we are happy to reply, pls send your questions and orders


Product Detail

Product Tags

Product descriptions from the supplier

Overview

a

PRODUCT DESCRIPTION

a

item Steel metal roof trapezoidal and corrugated iron roofing sheet tile making roll forming machine
Suitable to process Color alu-zinc steel coil
Roller 18Rows
Dimensions 9*1.55*1.8m
Motor Power 4Kw
Pump Station Motor 4Kw.
Thickness of the plate 0.3-0.8mm
Productivity 10-15m/min
Material of the cutting blade Cr12,Quenched treatment 58ºC-60ºC
Diameter of the roller Φ70mm
Weight About 4500kgs
Main structure of the machine 350H beams
Processing precision Within 1.0mm
Side panel of machine 16mm
Chain Wheel and Cycle Chain 1 Inch
Voltage 380V 50Hz 3phases or as customer's need
Control system PLC control (Delta)
Frequency system Delta
Drive mode Motor driver
Touch screen Delta
Rolling materials 45# forging steel with chromium plate
Length Tolerance ±2mm
 b  Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.



 1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.



 c
 d  High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.



 Square Tube Feed Platform

The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.



 e
 f

Gear and rack and rod combination

The combination of gears, rashes and rods in our roll forming machines ensures precise and synchronized movement, giving the machine greater stability and balance in shearing



 Cylinder protection

Cylinder protection is a crucial component of our roll forming machine, ensuring the durability and longevity of the equipment. It safeguards the precision-engineered cylinders, enhancing performance and minimizing maintenance costs.



 g
 h  Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.



Travel switchThe Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.



 i
 a

Guide post cutting head

The Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.



COMPANY INTRODUCTION

 e

PRODUCT LINE

a

OUR CUSTOMERS

b
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

c

FAQ
Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
