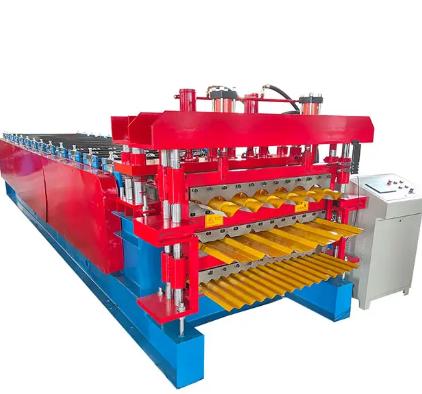

Building Material Ibr Panel Corrugated Metal Steel Glazed Tile Roofing Sheet Machine Three Layer Roll Forming Machine

Short Description:

Three layers roll forming machine can effectively save labor and costs Support customization

Any inquiries we are happy to reply, pls send your questions and orders


Product Detail

Product Tags

Product descriptions from the supplier

Overview

a

PRODUCT DESCRIPTION

a

1.Formed Material PPGI,GI,AI Thickness(0.14-0.8mm) Width(1000/1200mm)
2.Decoiler Hydraulic automatic decoiler Ordinary decoiler

3.Main body

Roller station 10-20 rows(As your requirement)
Diameter of shaft 70mm solid shaft
Material of rollers 45# steel, hard chrome plated on the surface
Machine body frame 350 H steel
Drive chain 1.2inch(As your requirement)
Dimension(L*W*H) 5500*1400*1300(customize)
Weight 4-6T
4.Cutter Automatic cr12mov material, no scratches, no deformation

5.Power

Motor Power 5.5KW
Hydraulic system power 7.5KW
6.Voltage 380V 50Hz 3Phase As your requirement

7.Control system

Electric Box Customized(famous brand)
Language English(Support multiple languages)
PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed 12-35m/min The speed depends on the shape of the tile and the thickness of the material.
 b

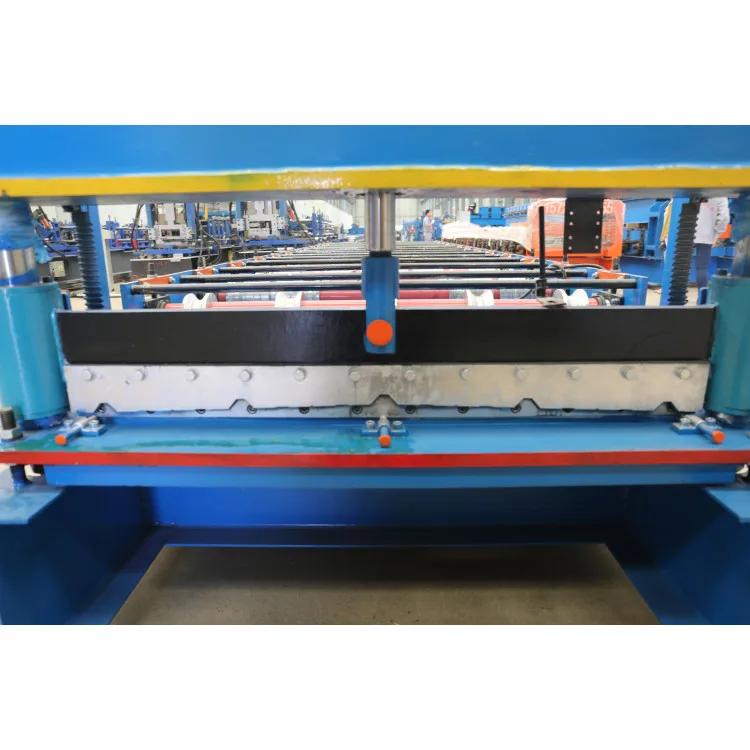

Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

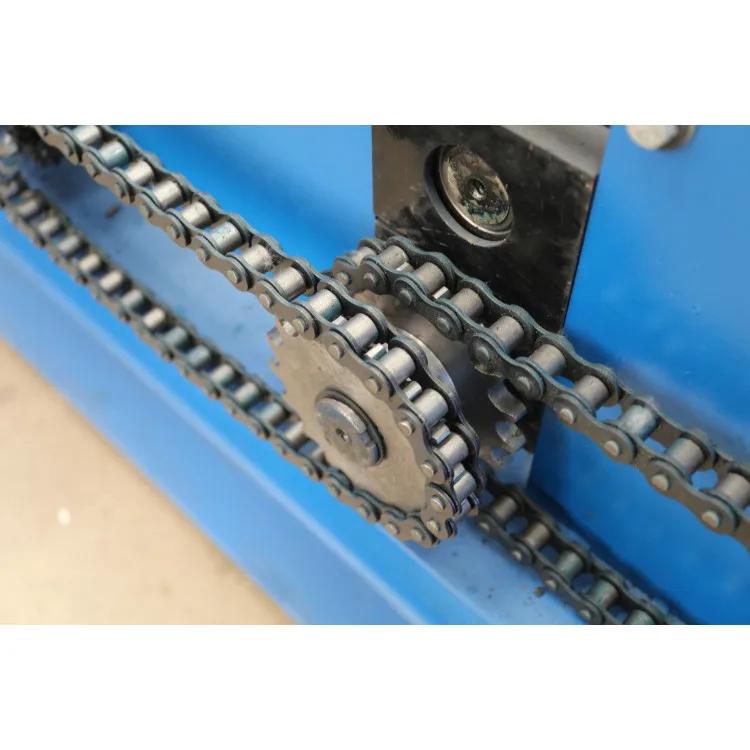

1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.



 c
 d

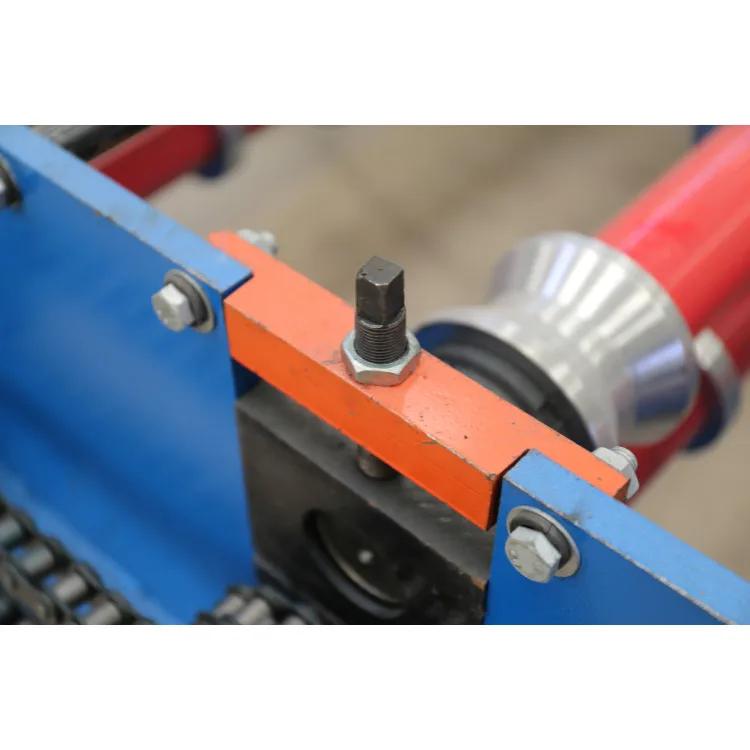

High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

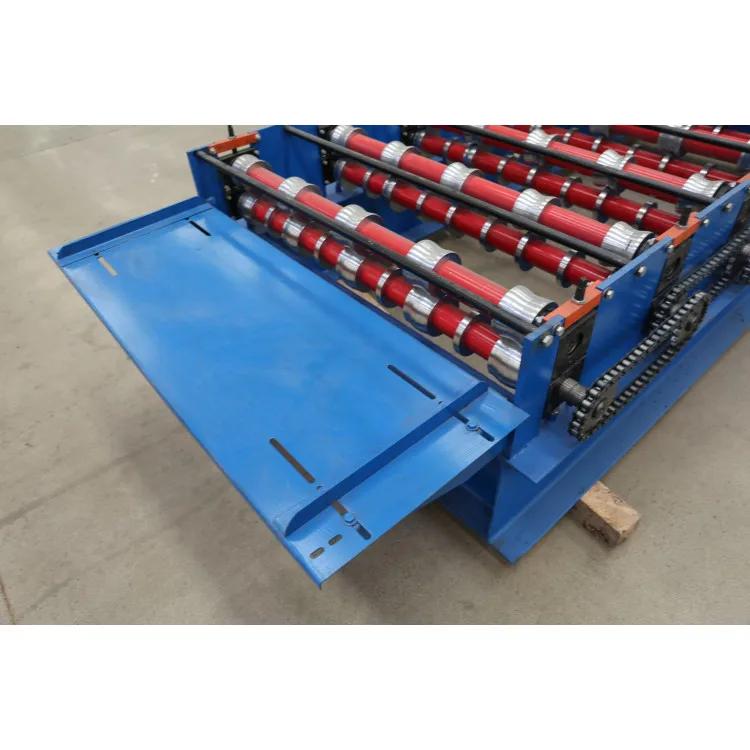

Square Tube Feed Platform

The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.



 e
 f

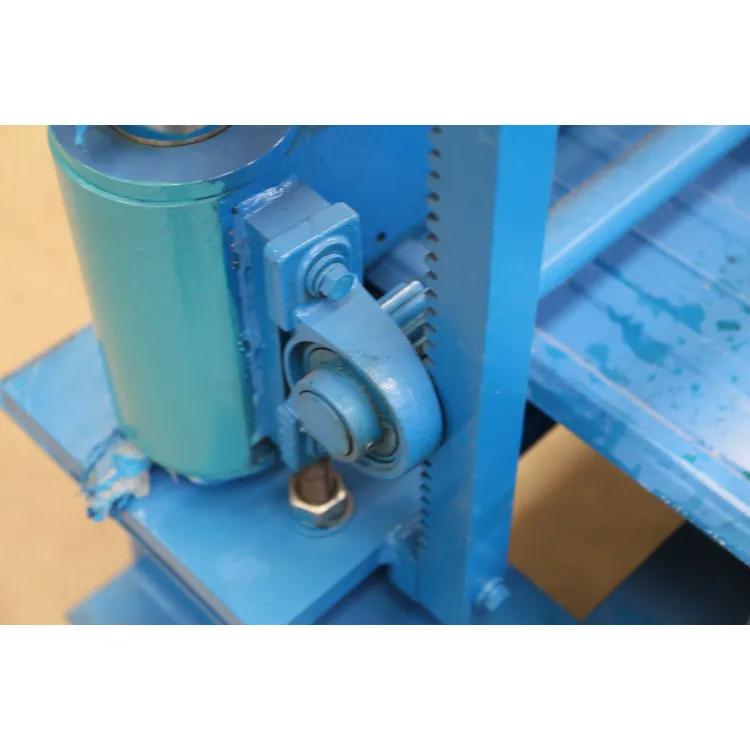

Gear and rack and rod combination

The combination of gears, rashes and rods in our roll forming machines ensures precise and synchronized movement, giving the machine greater stability and balance in shearing

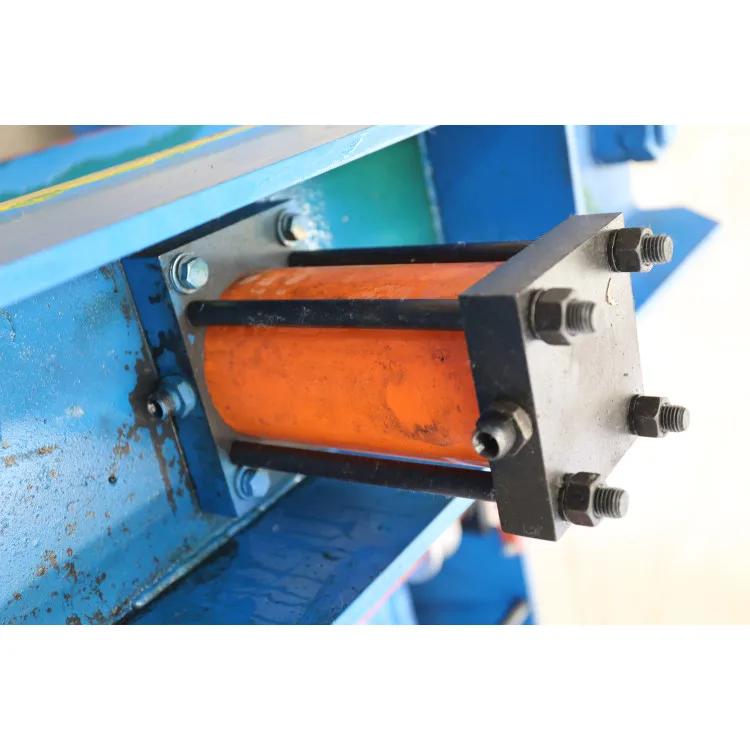

Cylinder protection

Cylinder protection is a crucial component of our roll forming machine, ensuring the durability and longevity of the equipment. It safeguards the precision-engineered cylinders, enhancing performance and minimizing maintenance costs.



 g
 h

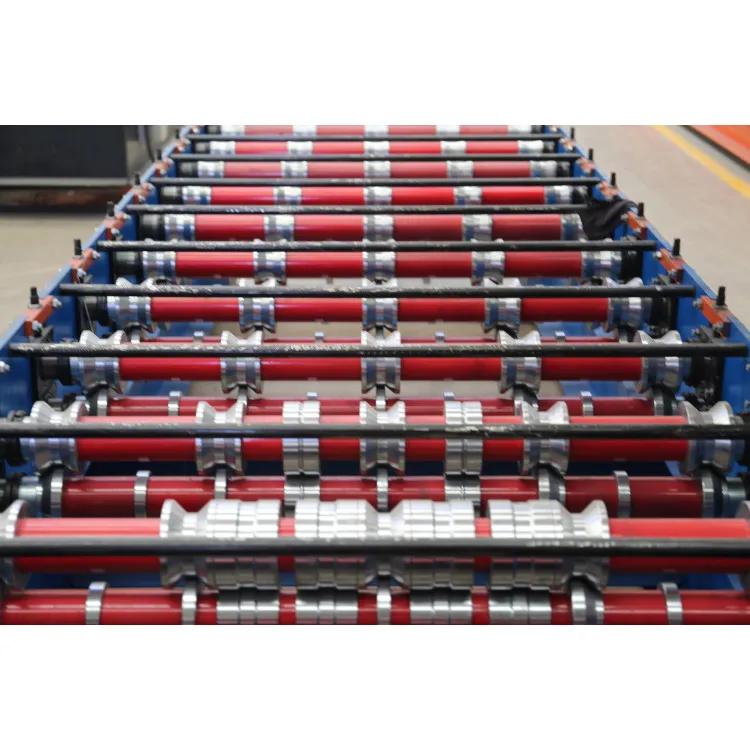

Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

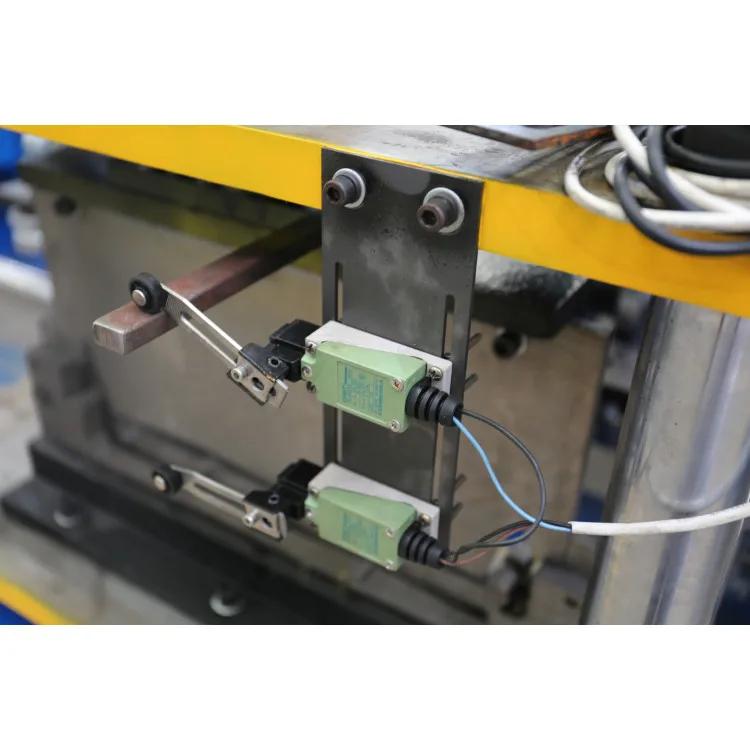

Travel switch

The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.



 i
 a



Guide post cutting head

The Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.



COMPANY INTRODUCTION

 e

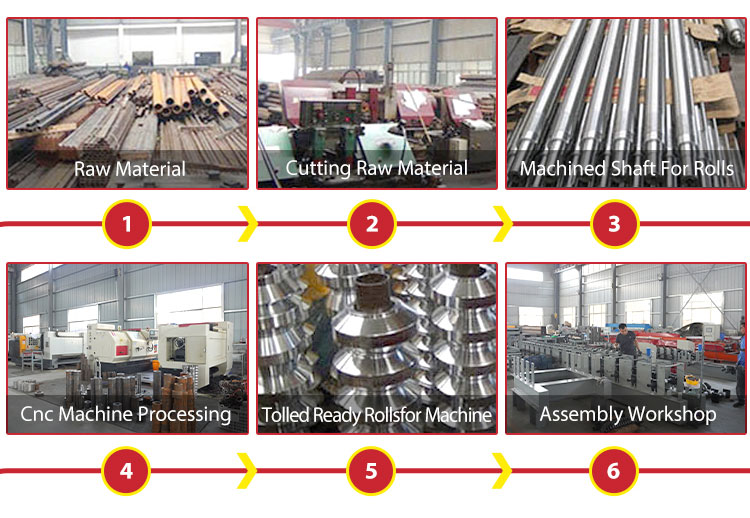

PRODUCT LINE

a

OUR CUSTOMERS

b
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

c

FAQ
Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
