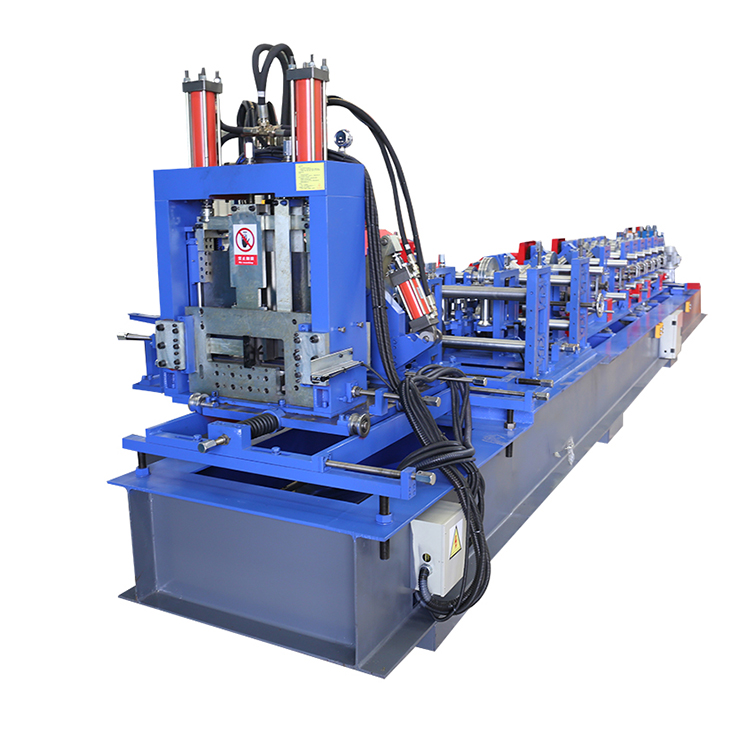

ZKRFM CZ Purlin Forming Machine C/Z profiled steel purlin roll forming system

Short Description:

CZ purlin forming machine is a special equipment used to produce C-type and Z-type purlins. Through automatic feeding, forming and cutting functions, the machine can quickly and accurately produce purlin products of various specifications for use in building roof trusses and wall support structures. It has the characteristics of efficient production and high-quality molding, and can meet the needs of the construction industry for purlin products of various specifications and shapes.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Product Detail

Product Tags





Formed Material PPGI,GI,AI Thickness:0.3-0.7mm
Decoiler Hydraulic decoiler Manual decoiler(will give you as free)
Main body Roller station 18 rows(As your requirement)
Diameter of shaft 80mm solid shaft
Material of rollers 45# steel, hard chrome plated on the surface
Machine body frame 350 H steel

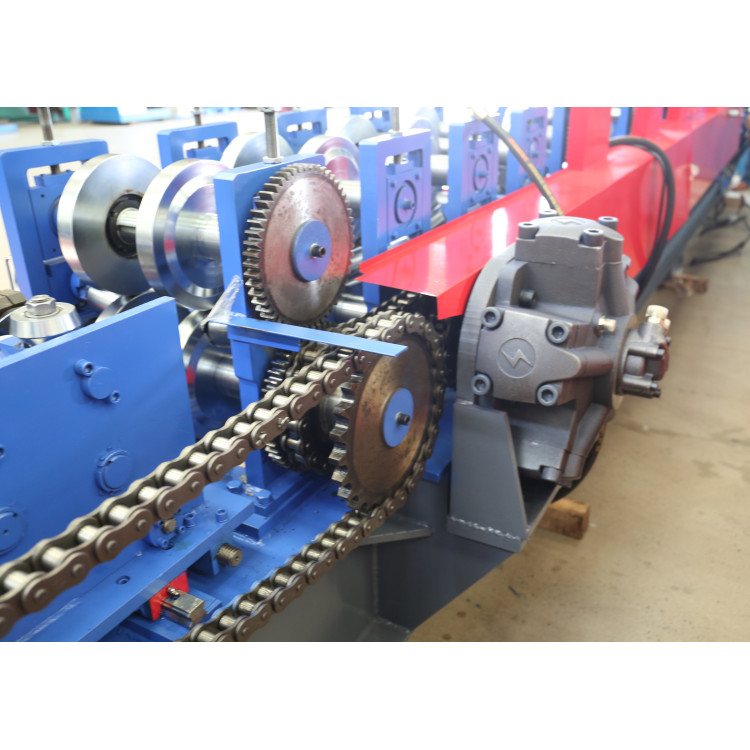

Drive one Chain transmission
Dimension(L*W*H) 8500*1000*1400mm
Weight 10T
Cutter Automatic cr12mov material, no scratches, no deformation
Power Main Power 22kw
Voltage 380V 50Hz 3Phase As your requirement
Control system Electric Box Customized(famous brand)
Language English(Support multiple languages)
PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed 12-24m / min The speed depends on the shape of the tile and the thickness of the material.


Electrohydraulic cut-off
The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

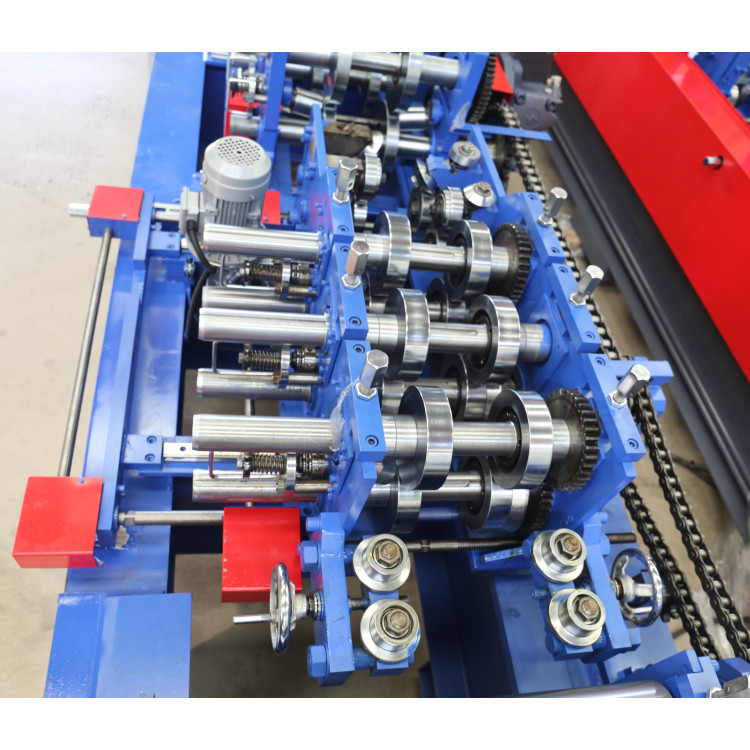

Chrome treated shaft and wheel
The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

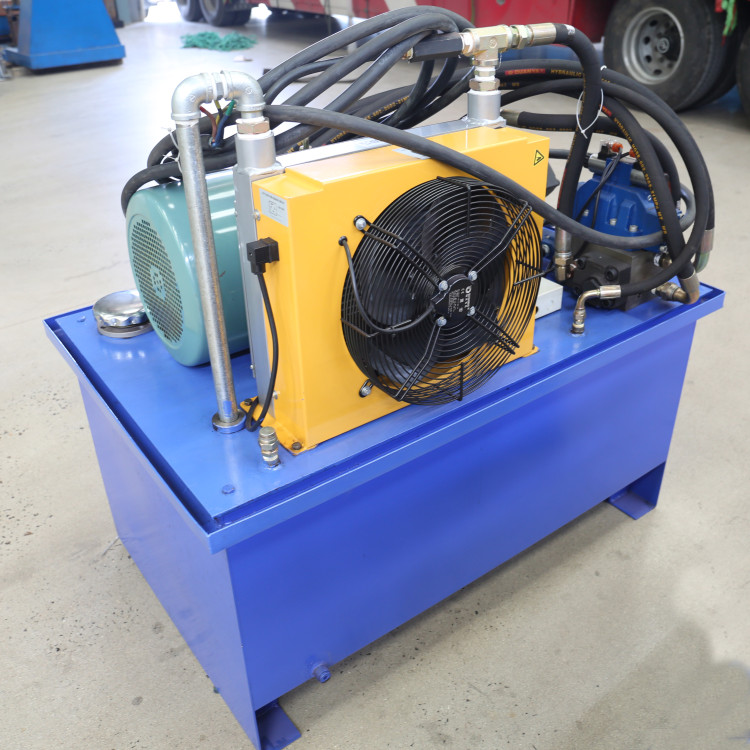

Hydraulic pump station
The Hydraulic Pump Station is a critical component of our roll forming machine, providing precise hydraulic power to shape and mold materials, ensuring efficient and accurate production processes.







Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!


Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
