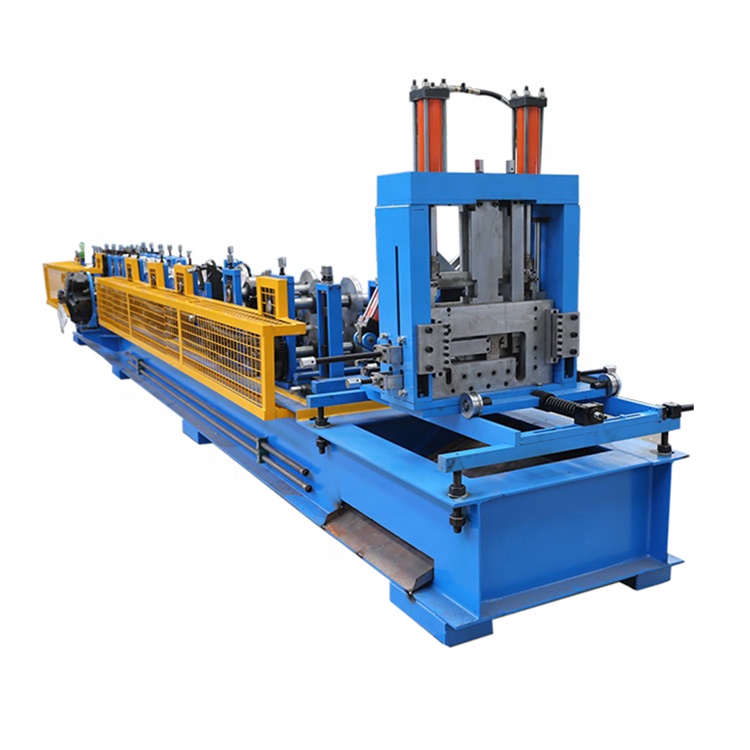

80-300mm Full Automatic CZ Purlin Roll Forming Machine

Short Description:

This purlin machine we use the servo motor and Intelligent production system.  Servo motors are well suited to precision to applications where accurate control of motor speed, position and/or torque is required.

Support customization, happy to respond to your questions and orders.


Product Detail

Product Tags

Product descriptions from the supplier

Overview

a

PRODUCT DESCRIPTION

CZ purlin machine 1
CZ purlin machine 2
CZ purlin machine 3
1.Formed Material PPGI,GI,AI Thickness:1.5-3.25mm
2.Decoiler Hydraulic automatic decoiler Manual decoiler(will give you as free)

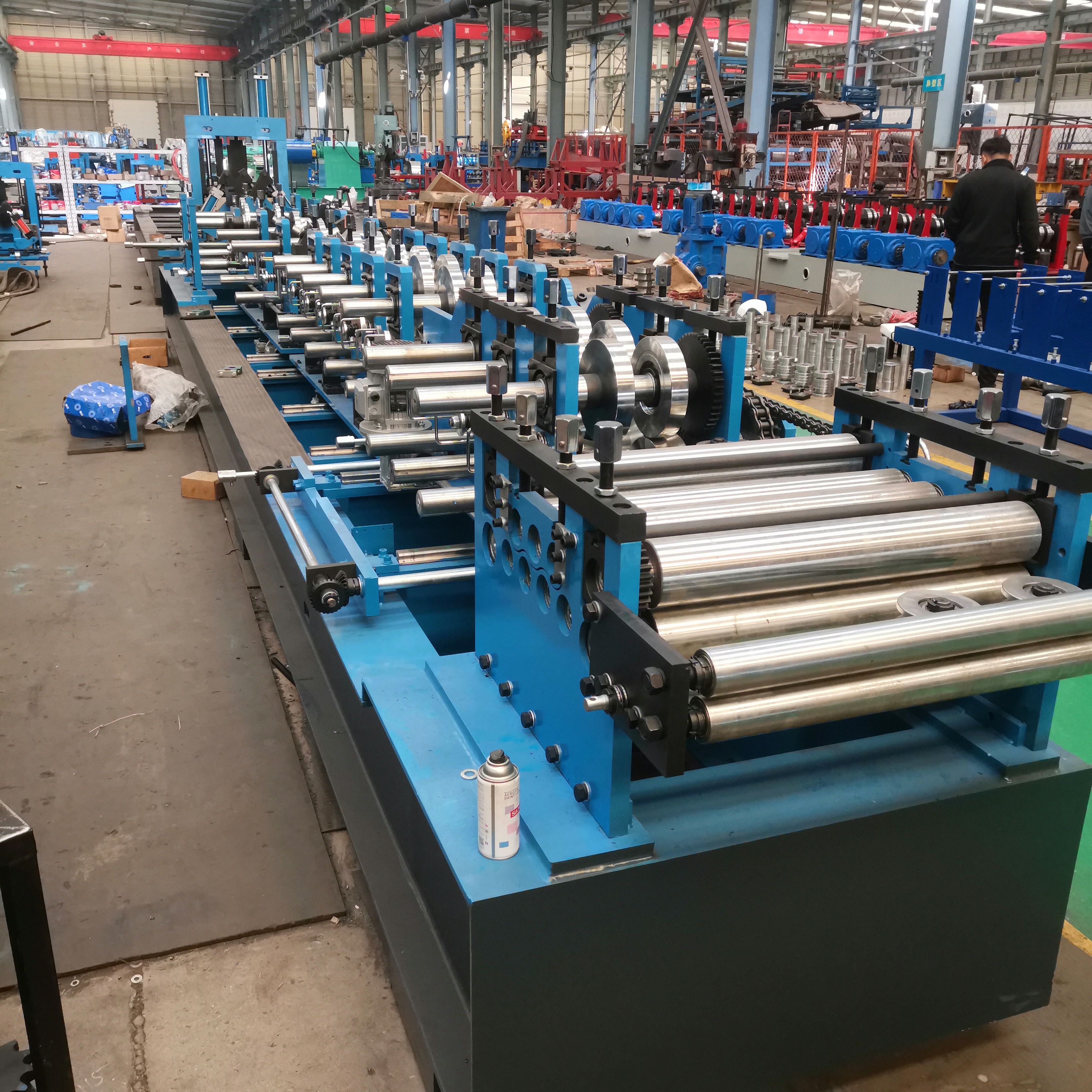

3.Main body Roller station 22 rows(As your requirement)
Diameter of shaft 80mm solid shaft
Material of rollers Gcr 15 with quenched teeatment
Machine body frame Metal steel welded
Drive Chain transmission
Dimension(L*W*H) 9000*800*1200(customize)
Weight 10Ton
4.Cutter Automatic Cr12mov material, no scratches, no deformation
5.Power Motor Power 15KW servo motor
  Hydraulic system power 7.5KW
6.Voltage 380V 50Hz 3Phase As your requirement
7.Control system Electric Box Customized(famous brand)
  Language English(Support multiple languages)
  PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed 60-70m/min(customized) The speed depends on the shape of the tile and the thickness of the material.
 CZ purlin machine 2

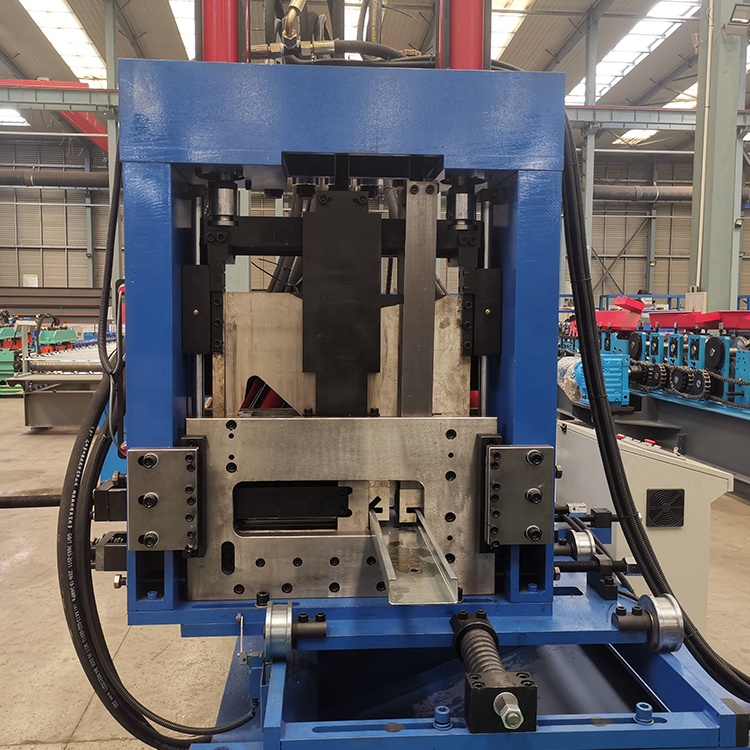

Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

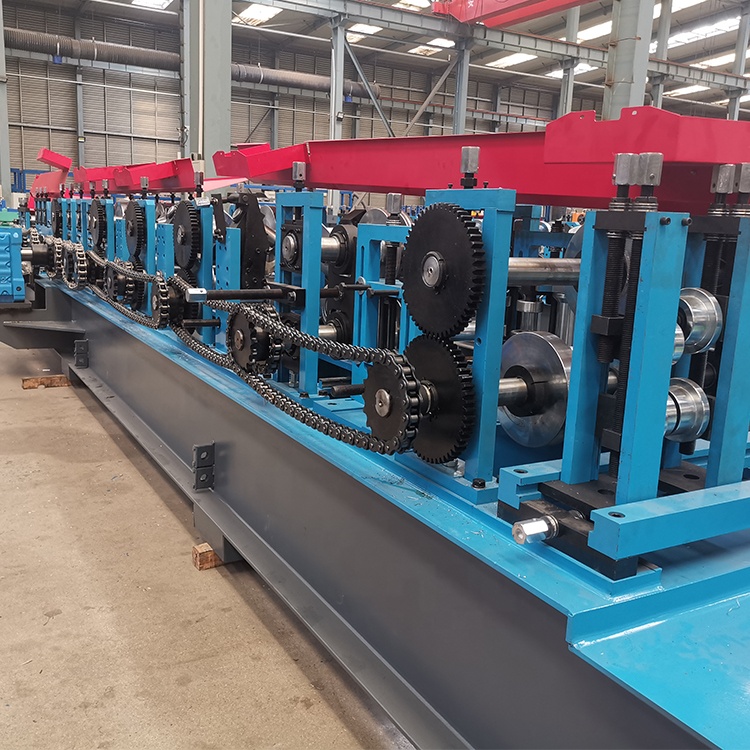

1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.



 b
 c

High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.





Square Tube Feed Platform

The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.



 d


Cylinder protection

Cylinder protection is a crucial component of our roll forming machine, ensuring the durability and longevity of the equipment. It safeguards the precision-engineered cylinders, enhancing performance and minimizing maintenance costs.



 e

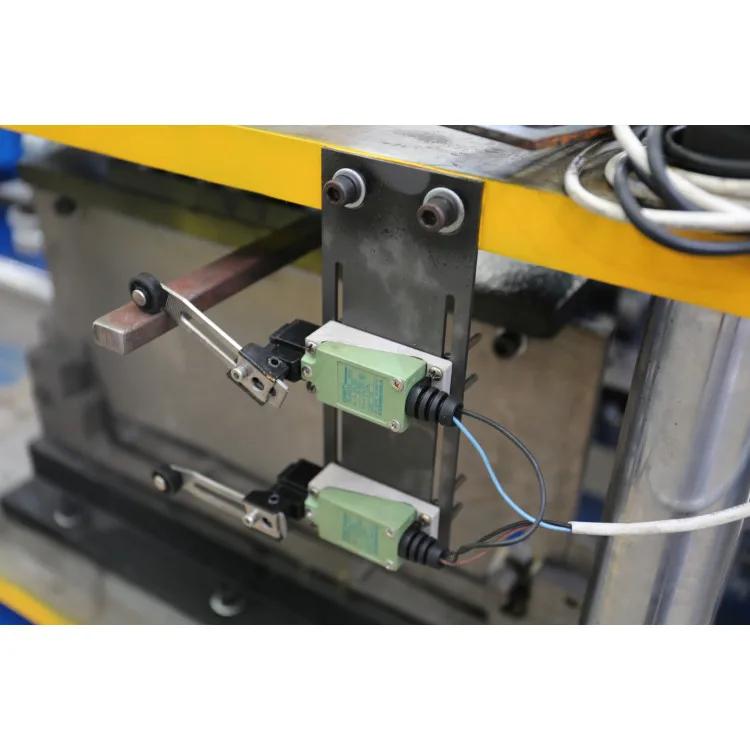

Travel switch

The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.



 h
 b



Guide post cutting head

The Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.



a
b
c

COMPANY INTRODUCTION

 e

PRODUCT LINE

a

OUR CUSTOMERS

b
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

c

FAQ
Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
