Wholesale China Factory Corrugated Roofing Sheet Roll Forming Machine Corrugated Roll Forming Machine

Short Description:

Water corrugated color steel molding equipment is an efficient and accurate sheet metal processing equipment. It uses advanced molding technology to process sheet metal into a beautiful water ripple shape. The equipment has a high precision control system, which can realize the precise control of the machining process. In addition, it has efficient production capacity, safe and reliable performance and easy operation.We also provide customized services and professional technical support and after-sales service

Send email to us

Product Detail

Product Tags

Product descriptions from the supplier

Overview

PRODUCT DESCRIPTION

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	9rows(As your requirement)
	Diameter of shaft	75mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	300 H steel
	Drive	Double Chain transmission
	Dimension(LWH)	750015001400mm
	Weight	4T
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	4+3 KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	8-12 m/min	The speed depends on the shape of the tile and the thickness of the material.

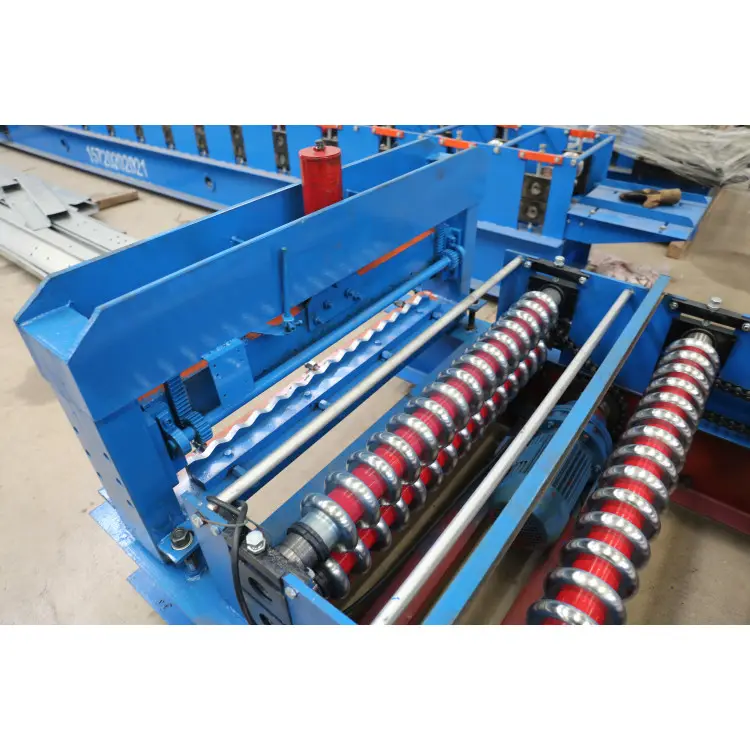

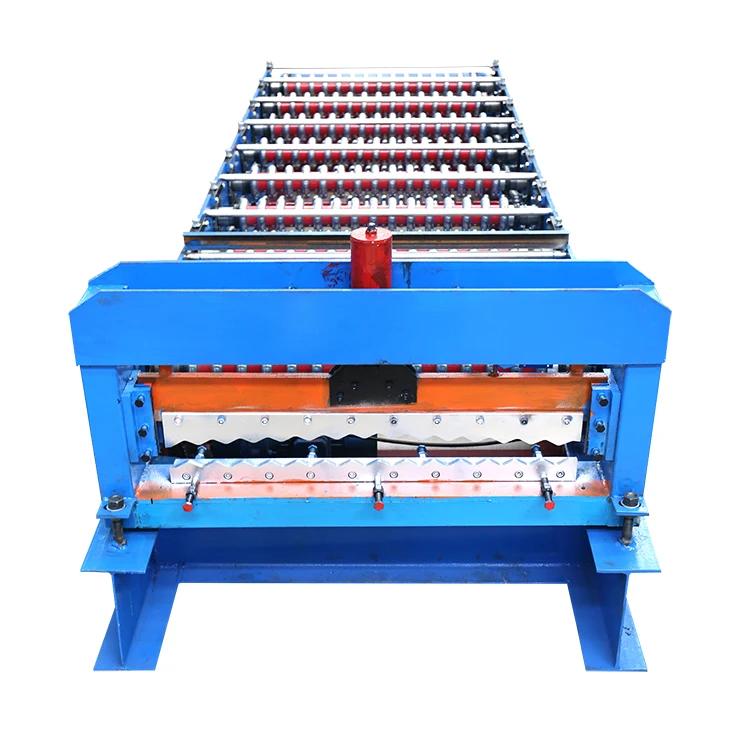

	Vertical plate shear headThe Vertical Plate Shear Head is a crucial component of the roll forming machine, designed to precisely cut and trim metal sheets vertically, ensuring accurate and efficient shaping in the manufacturing process.
Levelling and flattening feed platformThe Levelling and Flattening Feed Platform is an essential component of our roll forming machine, ensuring precise material alignment and flattening for seamless and accurate profile shaping
	Square Tube Feed PlatformThe Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.

COMPANY INTRODUCTION

PRODUCT LINE

OUR CUSTOMERS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
