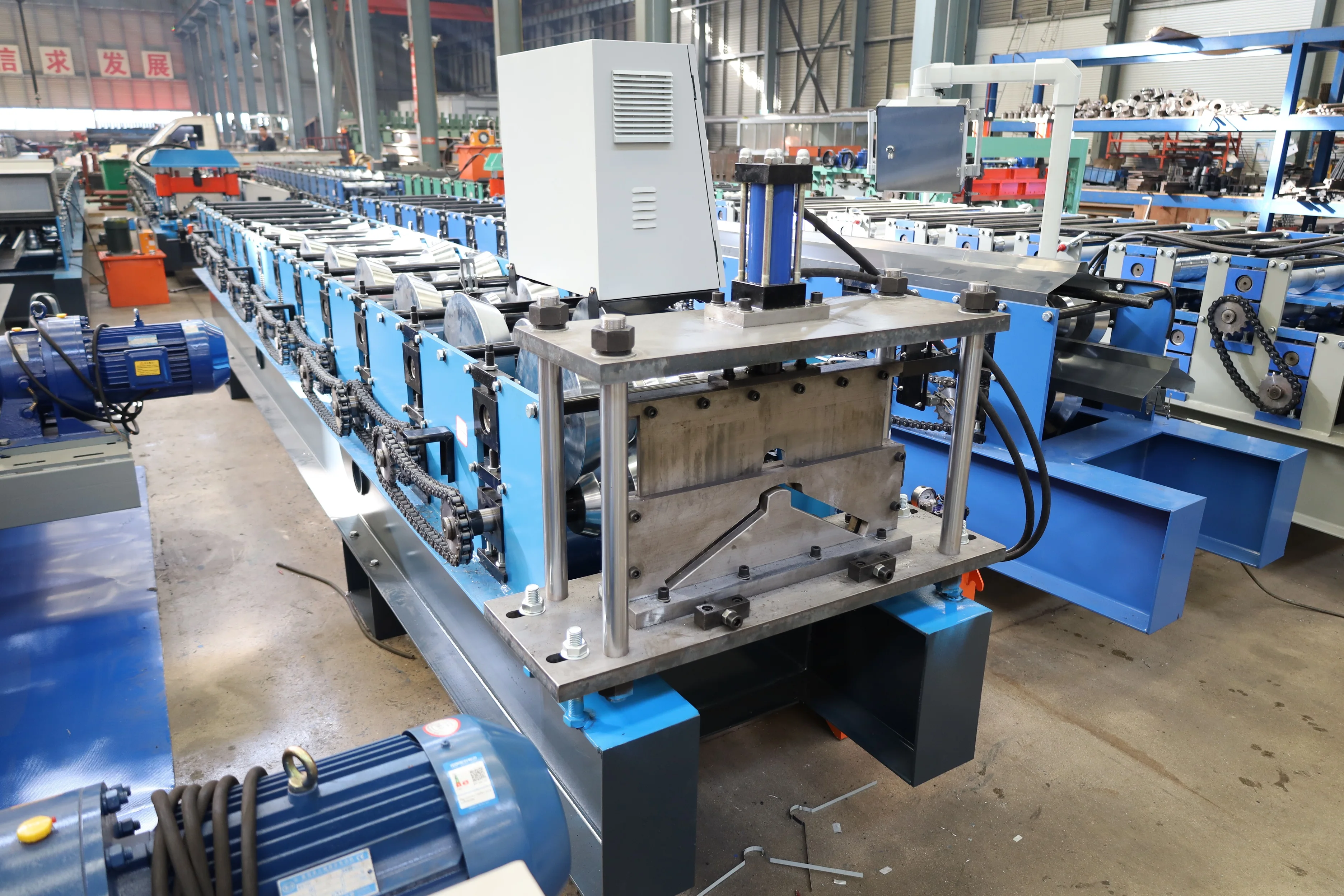

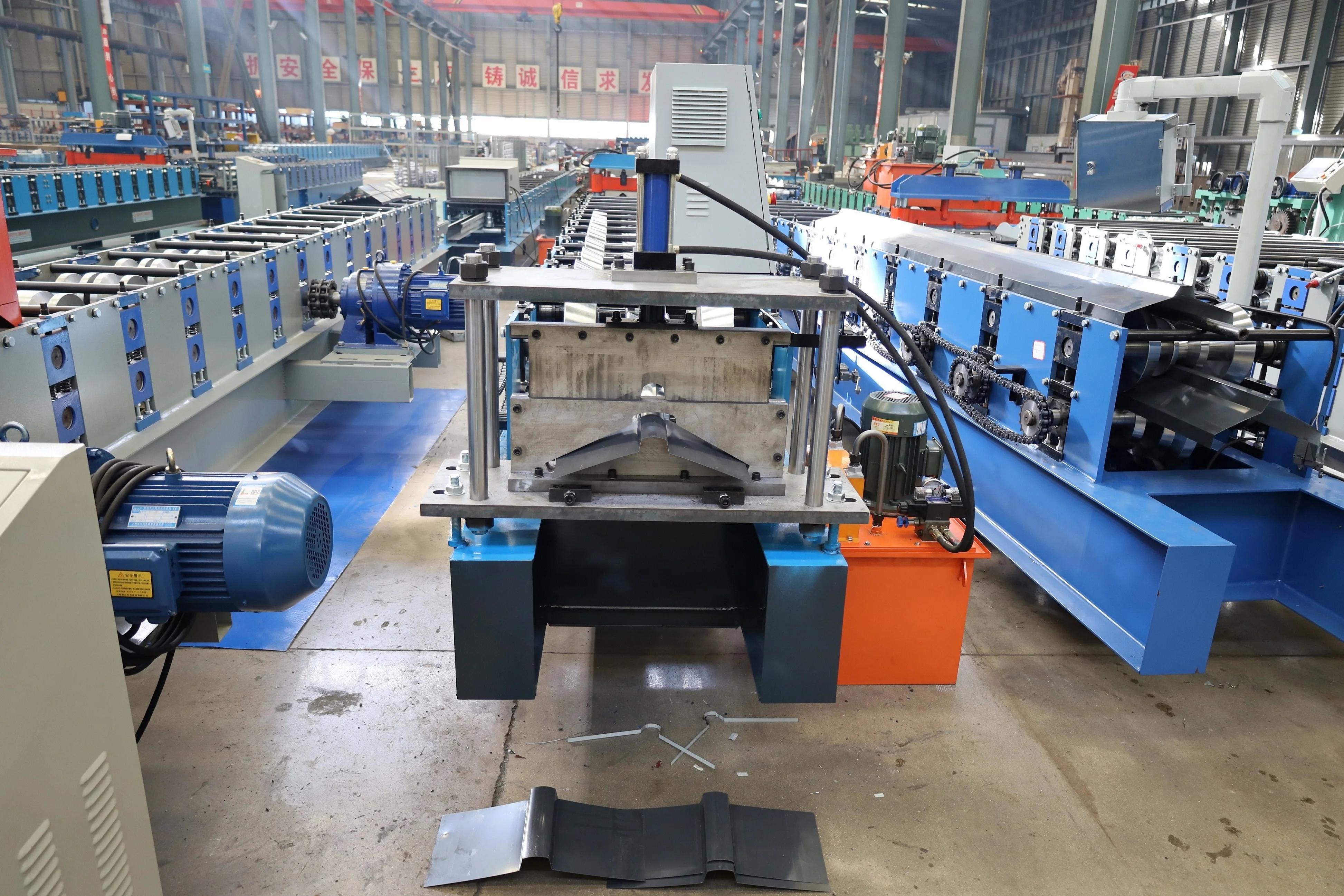

Hot Sale Metal Flashing Roof Ridge Cap Hip Cap Machine Tile Capping Roll Forming Machine

Short Description:

The roof ridge tile equipment is machinery and equipment used to produce and install roof ridge tiles. The roof ridge tile is a covering on the top of the roof, used to protect the roof ridge from wind and rain, and enhance the structural stability of the roof.The roof ridge tile equipment usually includes a roof ridge tile forming machine, a cutting machine, and an installation machine. These devices can automatically complete the production, cutting, and installation of roof ridge tiles, improving production efficiency and installation quality.The advantages of roof ridge tile equipment include high production efficiency, good installation quality, and savings in manpower. It can meet the production needs of roof ridge tiles of different specifications and shapes, and is widely used in the construction industry.We also provide customized services and professional technical support and after-sales service.

Product Detail

Product Tags

Product descriptions from the supplier





Formed Material PPGI,GI,AI Thickness:0.3-0.8 mm
Decoiler Hydraulic decoiler Manual decoiler(will give you as free)
Main body Roller station 12rows(As your requirement)
Diameter of shaft 75mm solid shaft

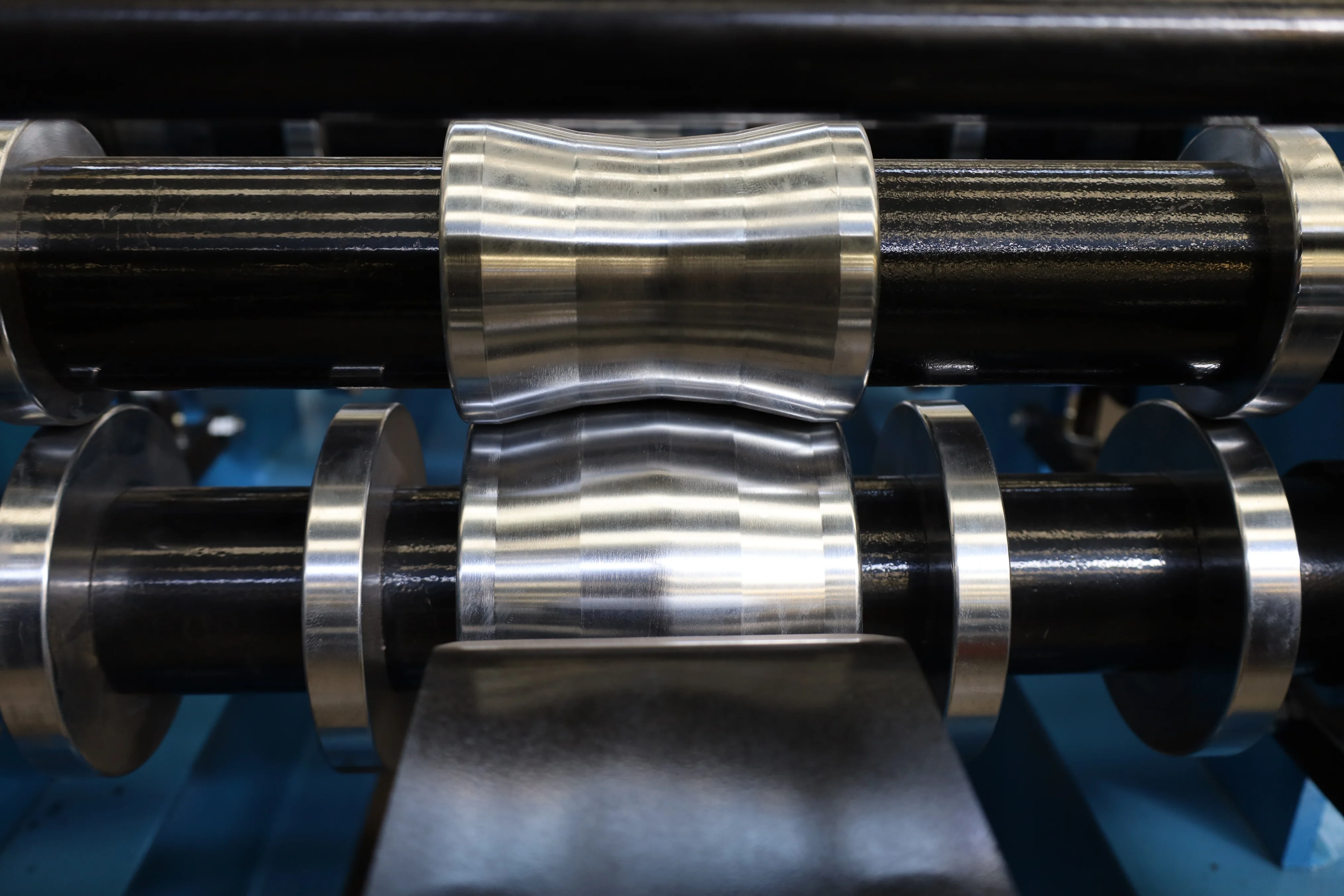

Material of rollers 45#, hard chrome plated on the surface
Machine body frame 350H steel
Drive Double Chain transmission
Dimension(L*W*H) 6.2*1.1*1.55m
Weight About 2800KG

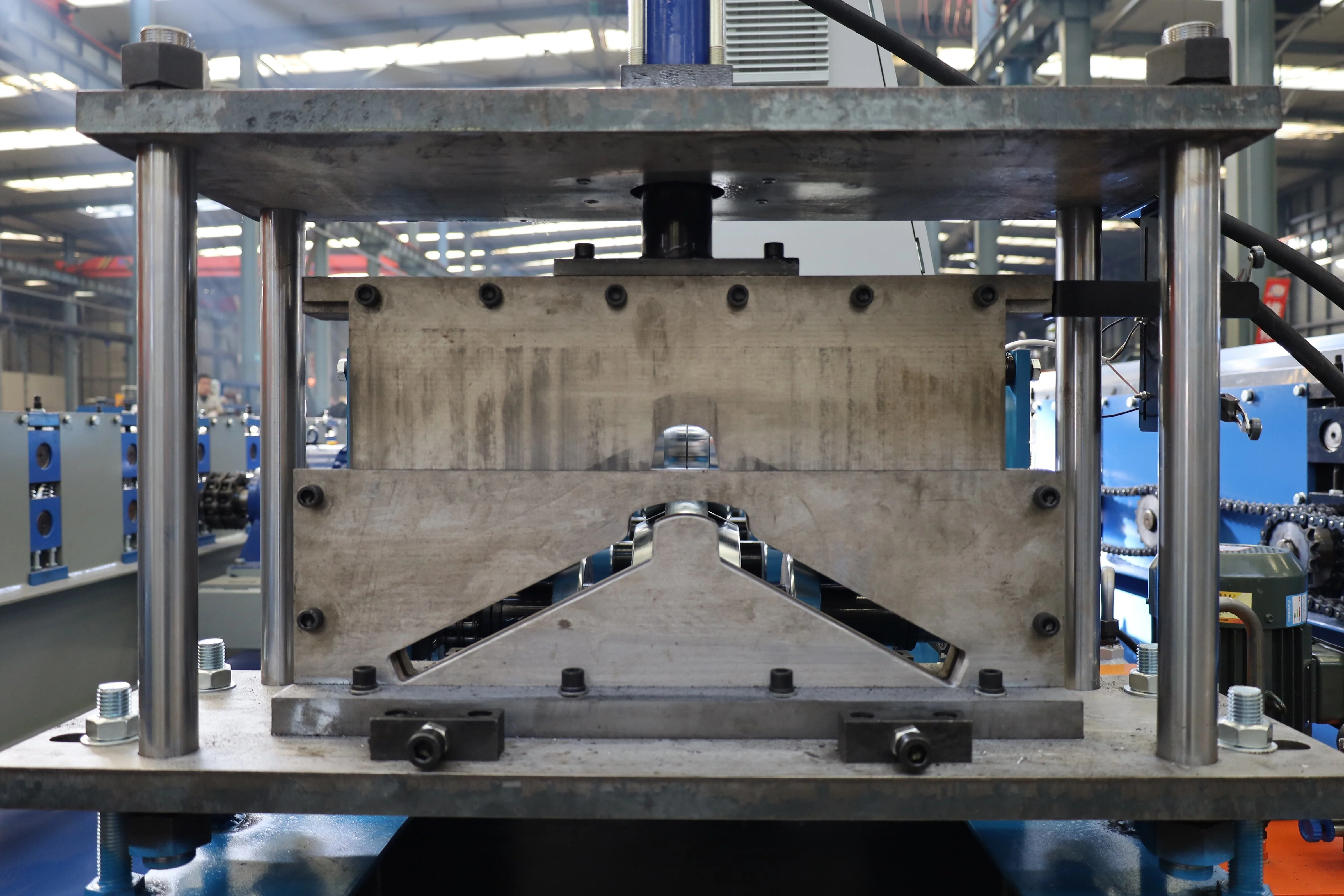

Cutter Automatic cr12mov material, no scratches, no deformation
Power Main Power 5.5KW or As your requirement
Voltage 380V 50Hz 3Phase As your requirement
Control system Electric Box Customized(famous brand)
Language English(Support multiple languages)
PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed 15 m/min The speed depends on the shape of the tile and the thickness of the material.

Roof ridge cap roll forming machine makes ridge caps or valley flashings installed along the ridge line of a sloped roof or in valleysduring the installation of metal roof panels produced by a roof panel roll forming machine.







Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!


Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
