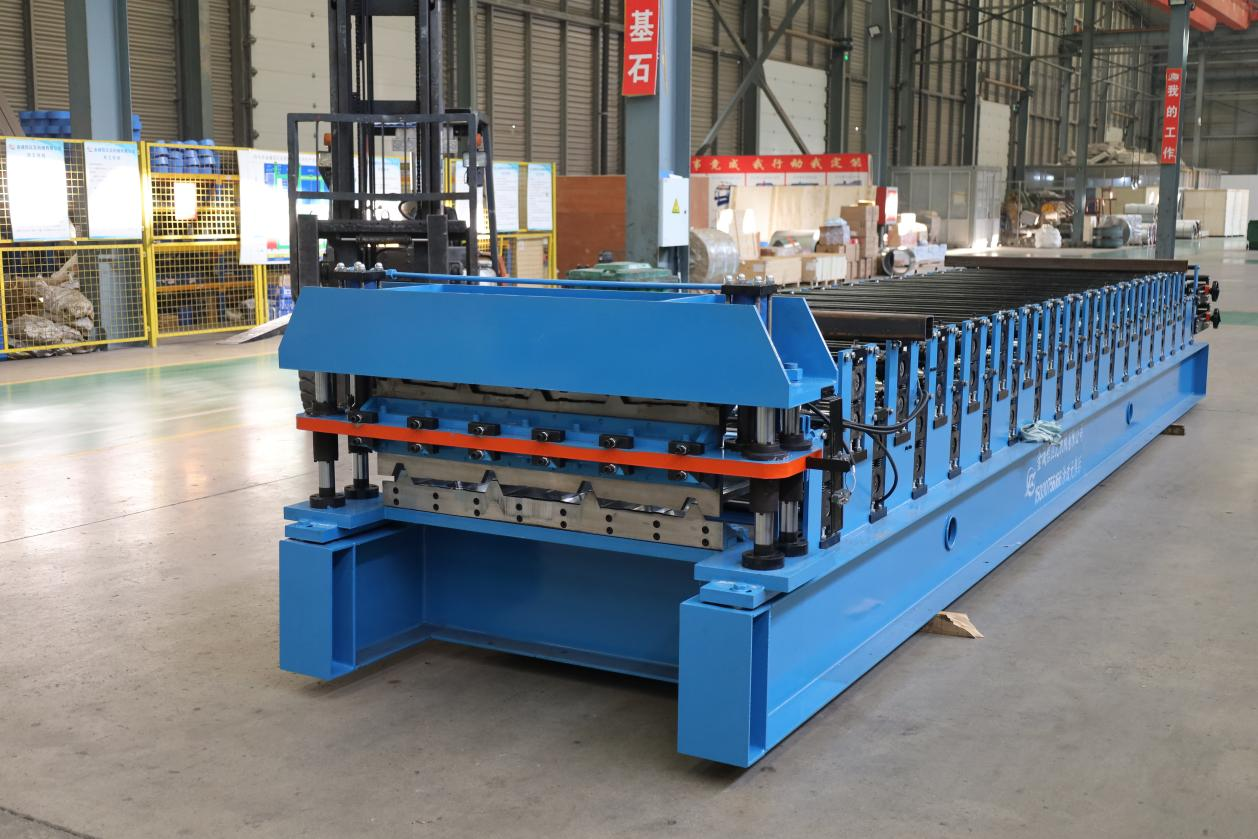

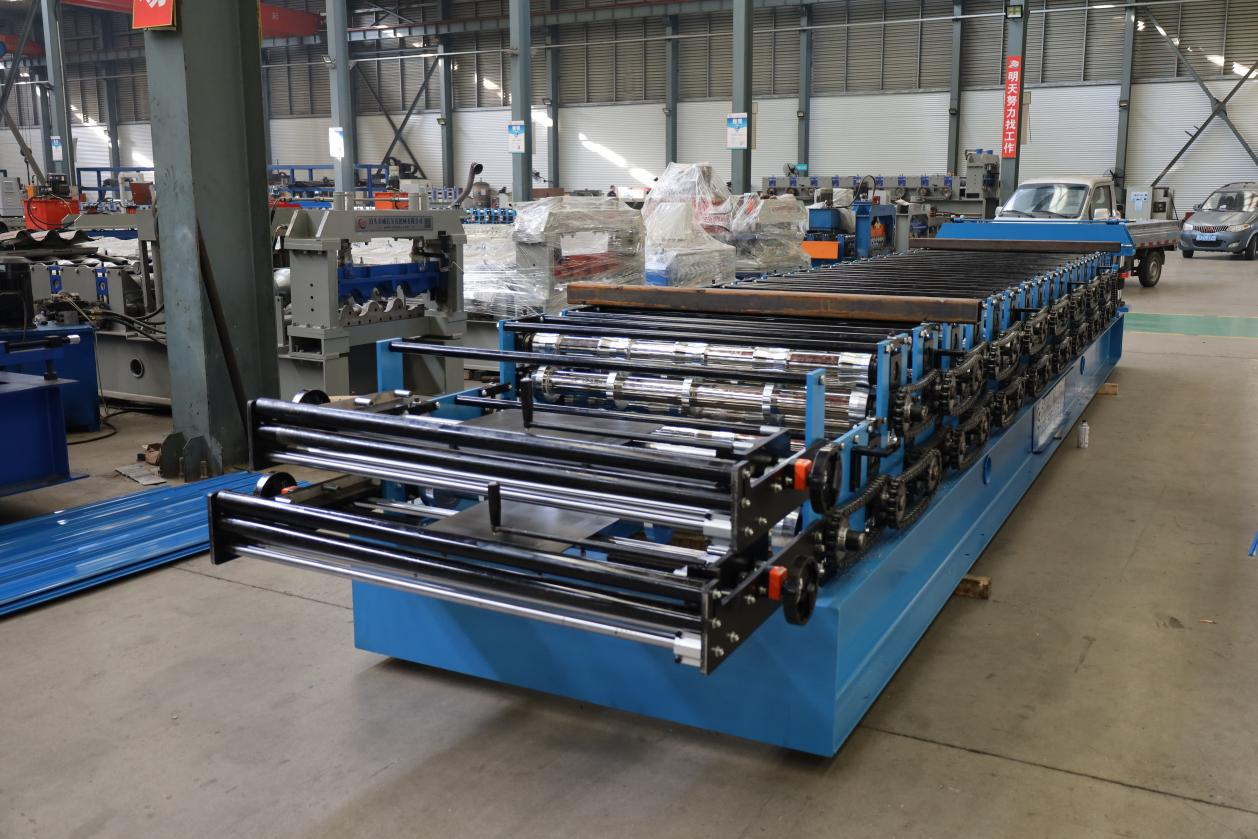

High Quality Double layers Roll Forming Machine

Short Description:

Double layers Machine

Forming machine for manufacturing metal tile profile.
Double layer machines make double layer roofings to save your space, save your time and save your money, 2 profile in 1 machine.

Support customization, happy to respond to your questions and orders.


Product Detail

Product Tags

asd (1)
asd (2)
asd (3)
asd (4)

Technical parameters
Width of the feeding material 1000~1450mm
Usage Roof
Thickness 0.3-0.8mm
Trademark ZHONGKE MACHINERY
Transmission Method Motor Drive
Material Type PPGL,PPGI
Production Speed 0-15m/min Adjustable
Roller Material 45# Chromium plating if necessary
Motor Power 9Kw
Brand of Electric Control System As Required
Voltage 380V 50Hz 3phases
Weight 4ton

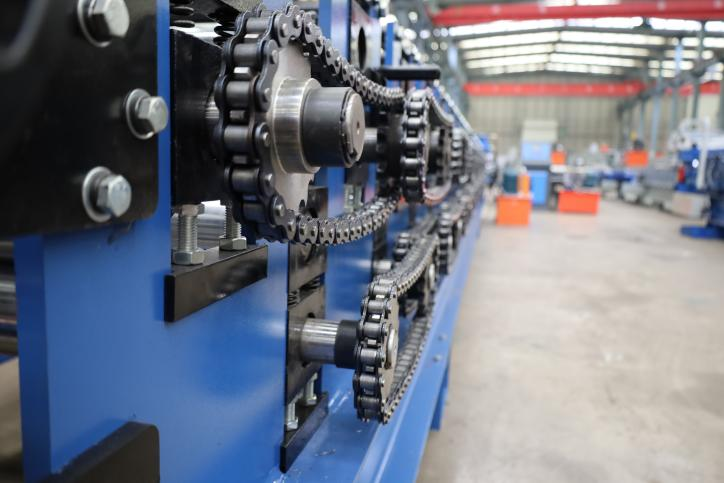

Drive Type By Chains

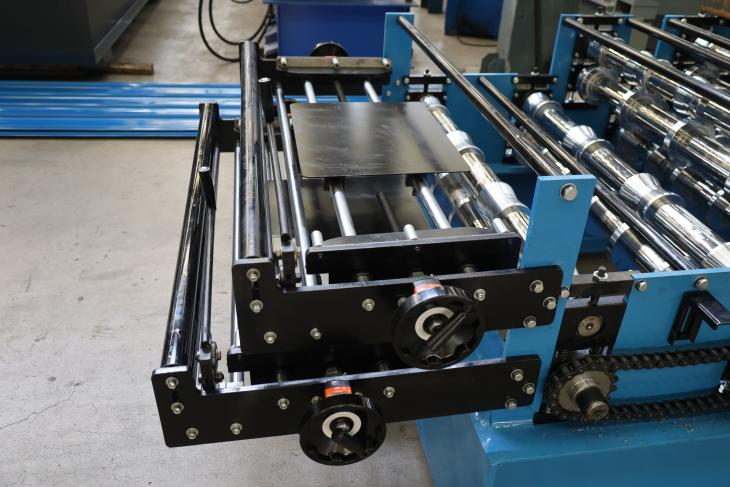

Can be used with uncoiler, easy feeding, cutting, safe and efficient

asd (5)
asd (6)

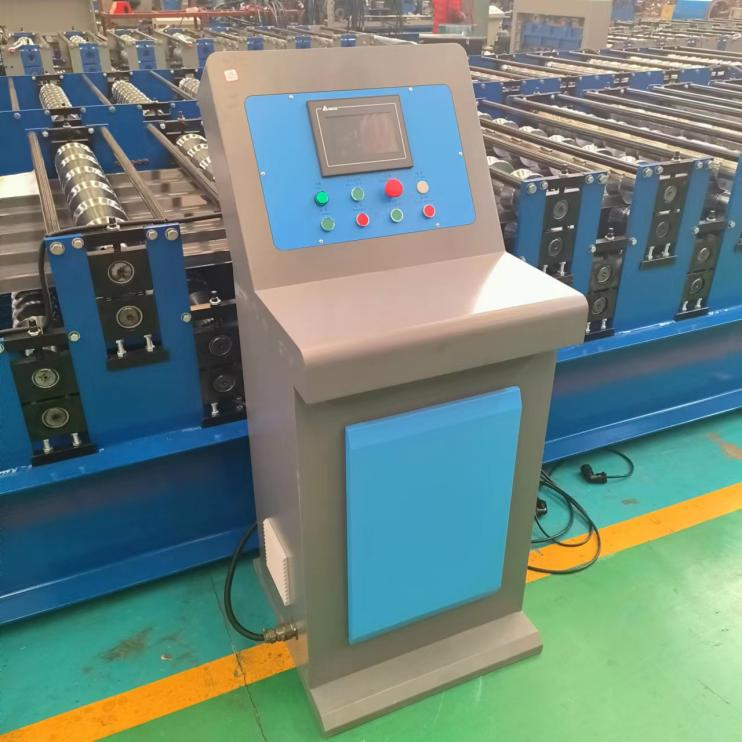

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.



Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.

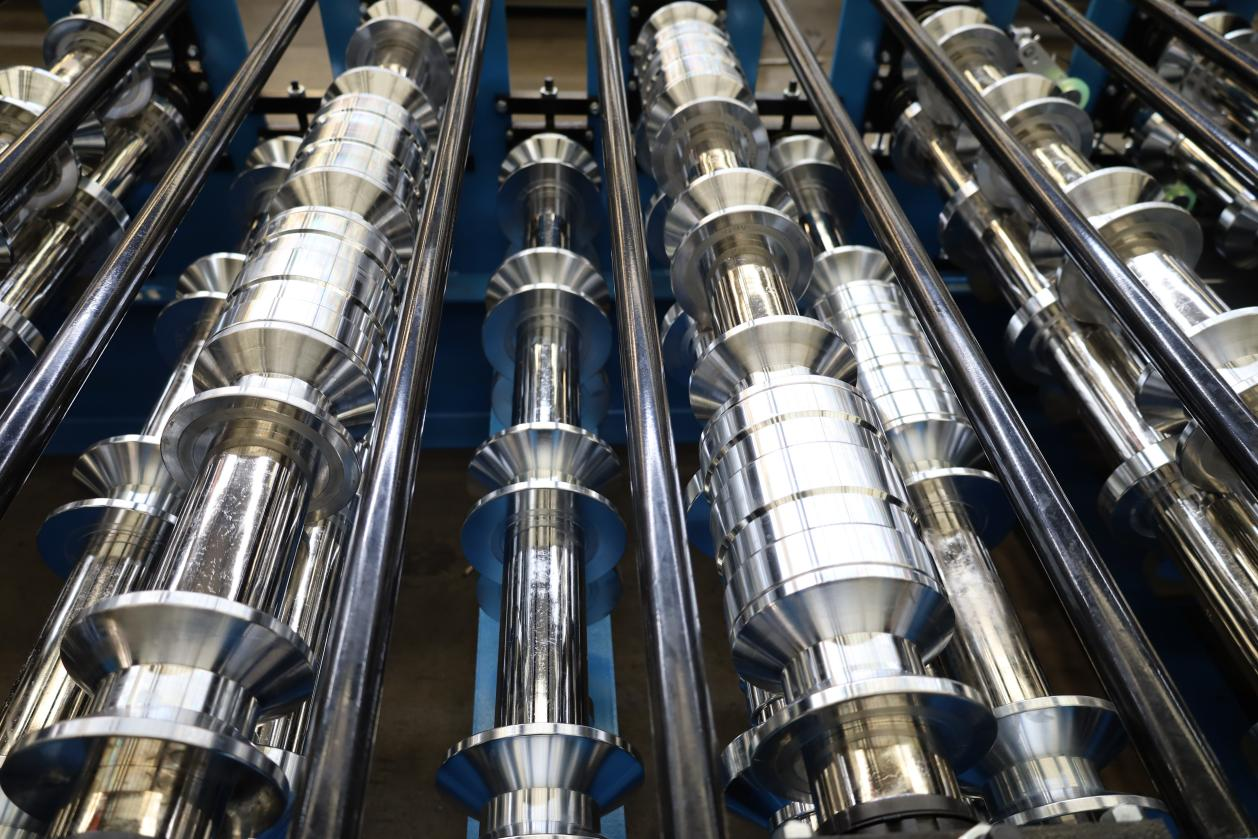

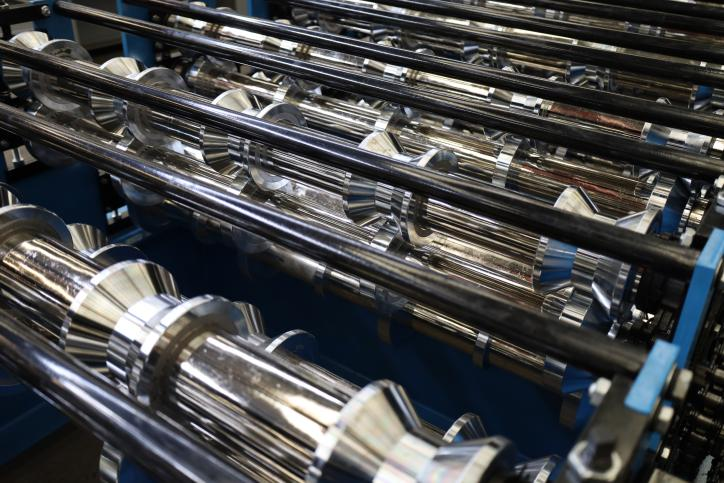

Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm

asd (7)
asd (8)

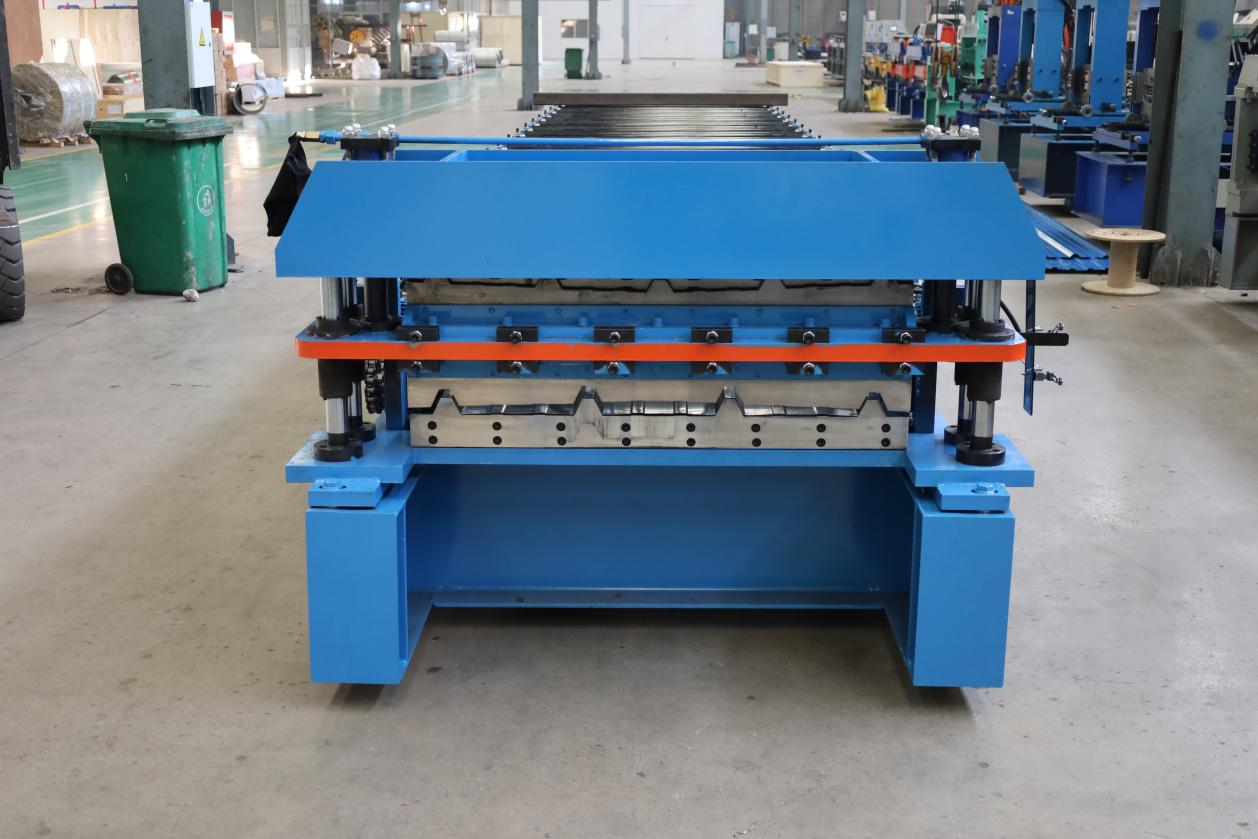

The main frame adopts 400H steel structure;



Cast steel drawing plate is used in the middle plate to ensure that no deformation occurs when the machine rolls thick plate.
