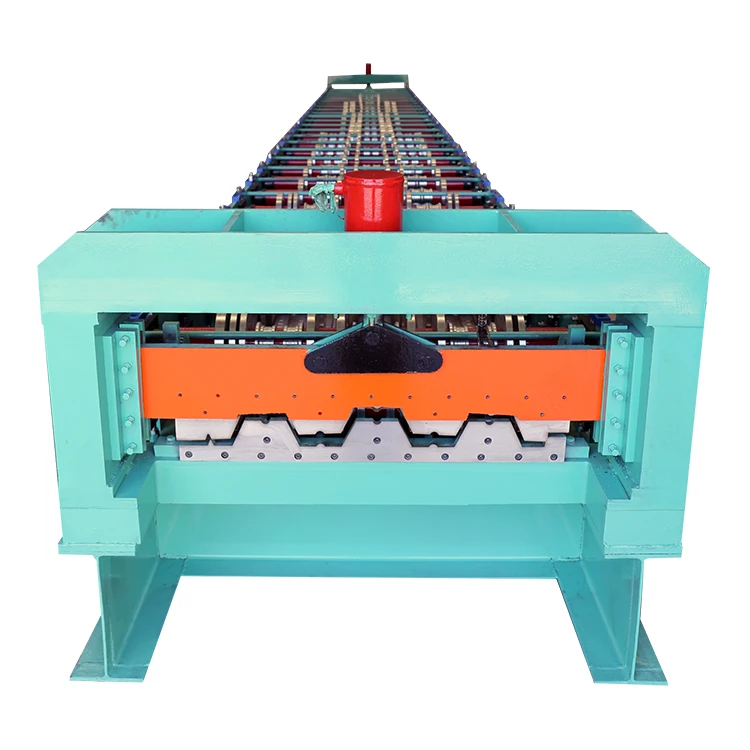

Floor Deck Panel Machine Deck Floor Roll Forming Machine
Product Description
|
Formed Material |
PPGI,GI,AI |
Thickness:0.3-0.8mm |
|
Decoiler |
Hydraulic decoiler |
Manual decoiler(will give you as free) |
|
Main body |
Roller station |
18-20rows(As your requirement) |
|
Diameter of shaft |
80mm solid shaft |
|
|
Material of rollers |
45# steel, hard chrome plated on the surface |
|
|
Machine body frame |
300 H steel |
|
|
Drive |
Double Chain transmission |
|
|
Dimension(L*W*H) |
11 * 1.3 * 1.4m |
|
|
Weight |
5T |
|
|
Cutter |
Automatic |
cr12mov material, no scratches, no deformation |
|
Power |
Main Power |
11 + 4KW |
|
Voltage |
380V 50Hz 3Phase |
As your requirement |
|
Control system |
Electric Box |
Customized(famous brand) |
|
Language |
English(Support multiple languages) |
|
|
PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
|
|
Forming Speed |
8-12m/min |
The speed depends on the shape of the tile and the thickness of the material. |

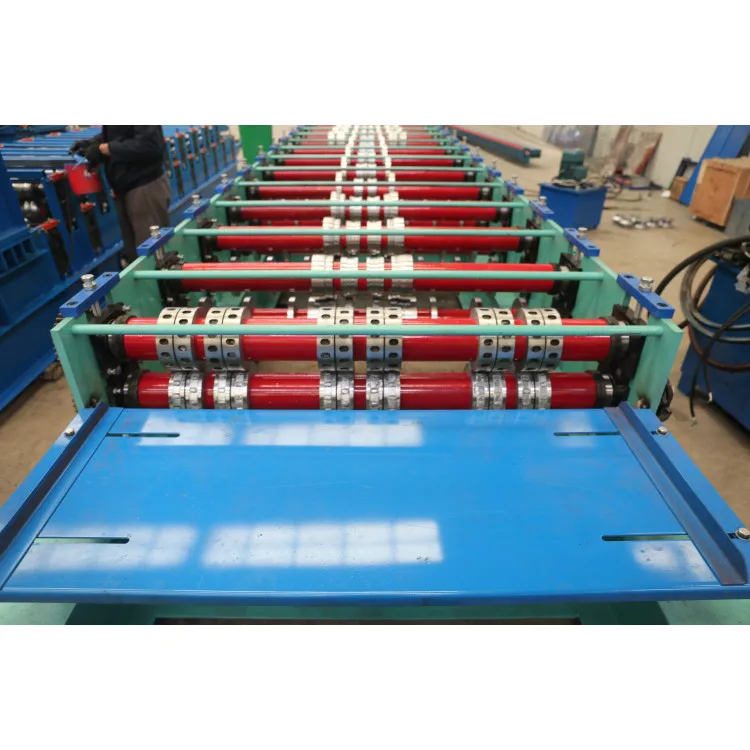

Square Tube Feed Platform
The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.

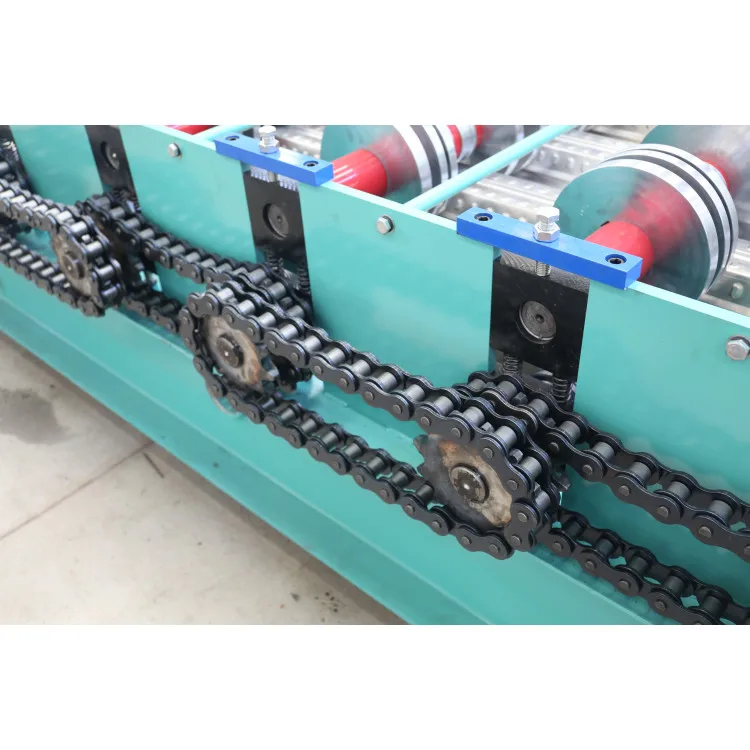

1 inch chain
The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.

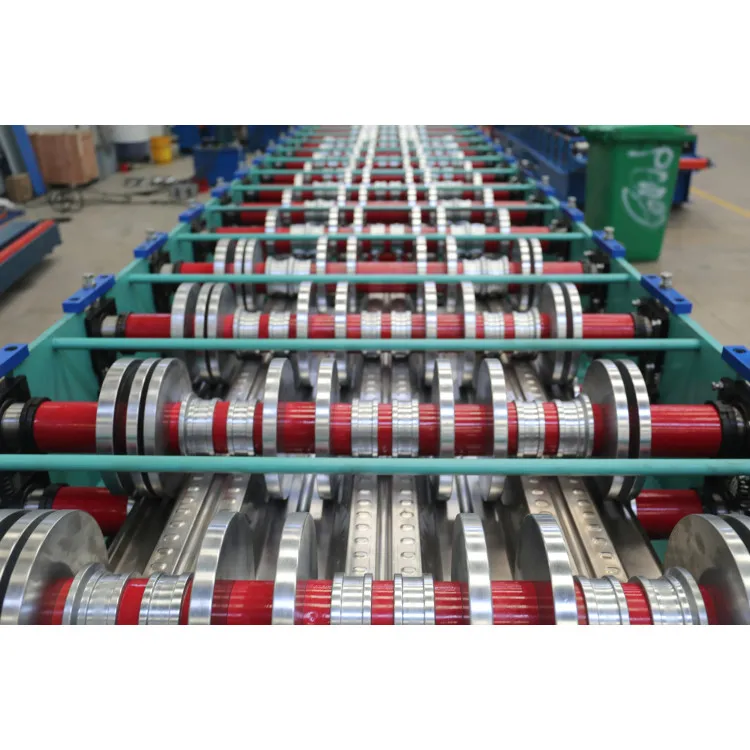

Chrome treated shaft and wheel
The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.
Electrohydraulic cut-off
The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

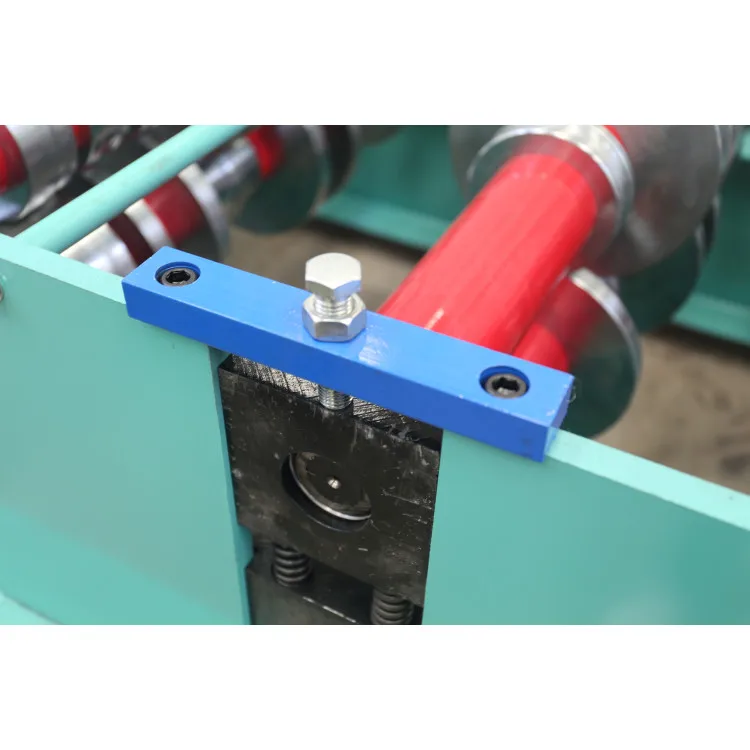

High strength top screws
High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

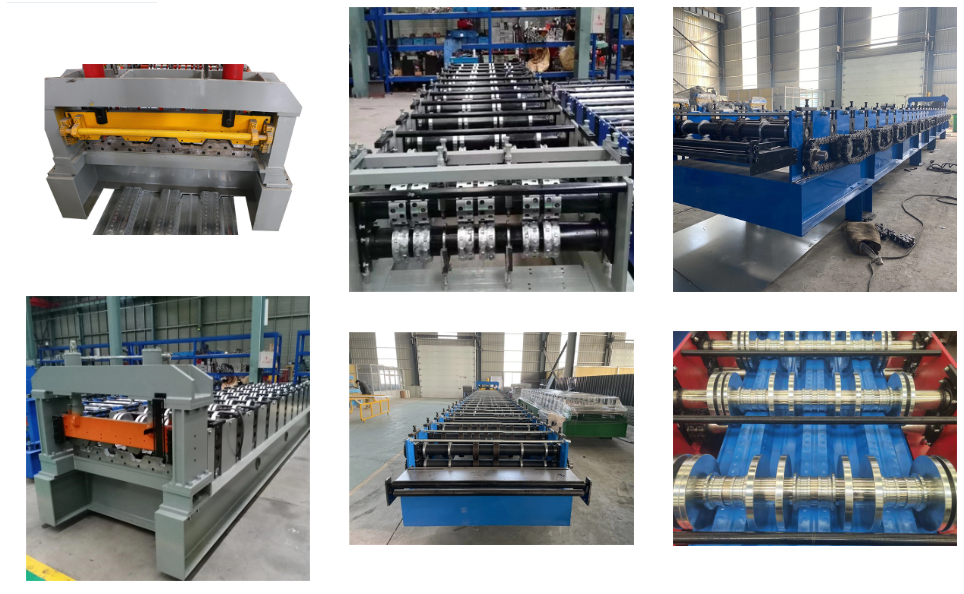

PRODUCT LINE
Packaging & Shipping
Company Profile
PACKAGING & LOGISTICS
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
