High Strength Floor Deck Full Automatic Roll Forming Machine

Short Description:

1000 floor deck roll forming machine popular sell in many countries, Coil width before rolling is 1220mm /1000mm. After rolling product width is 1000mm or 688mm, Material common is GI material, material thickness common between 0.8-1 mm.


Product Detail

Product Tags

acvsdb (1)
acvsdb (2)

Product Line

acvsdb (4)
acvsdb (5)
acvsdb (6)
acvsdb (8)
acvsdb (7)
acvsdb (9)

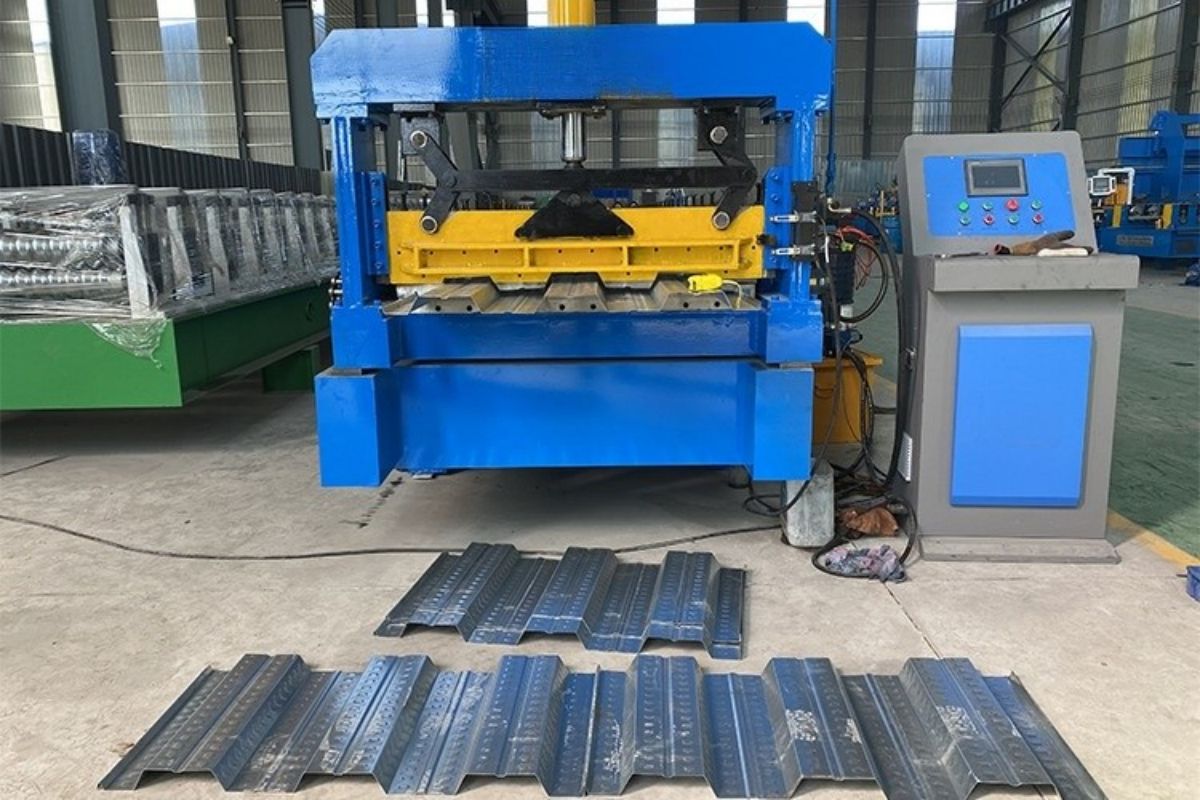

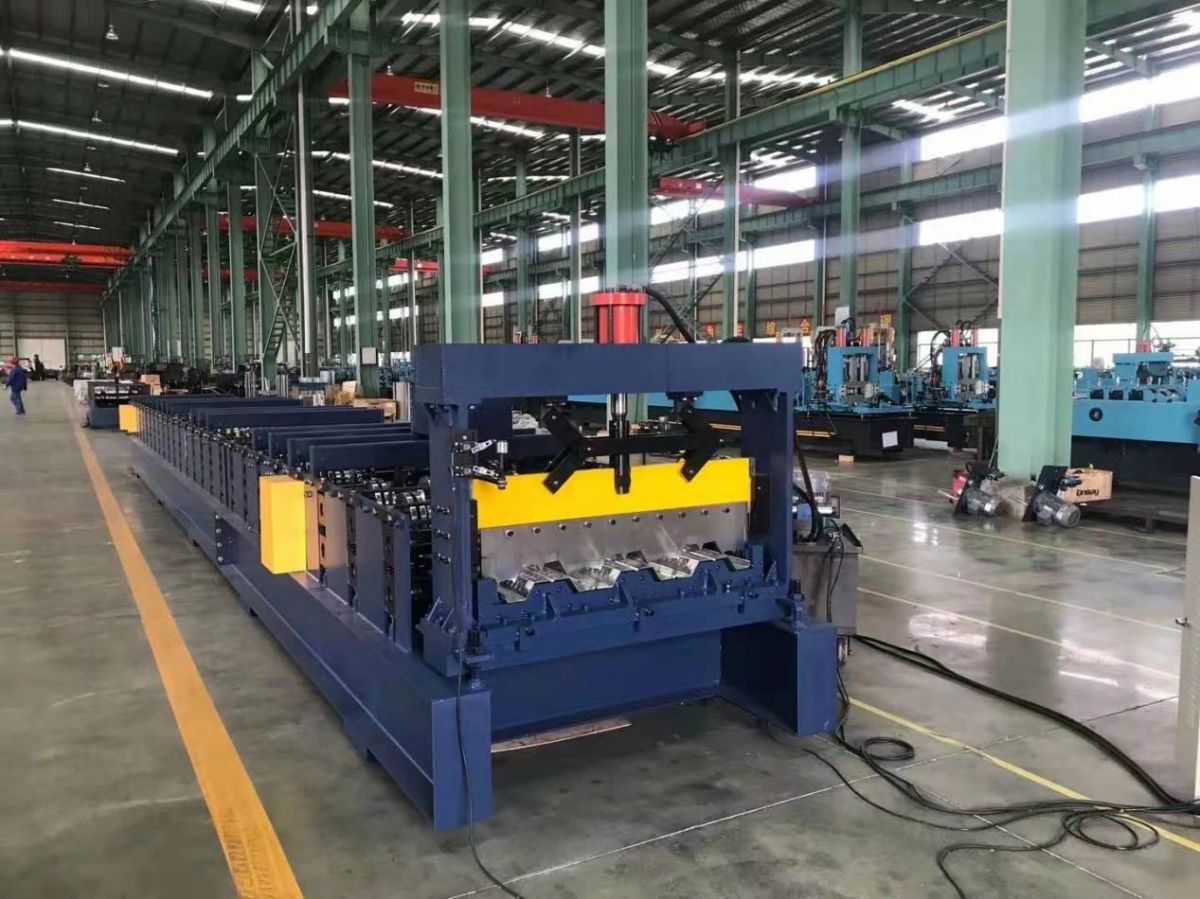

Floor deck roll forming machine

1000 floor deck roll forming machine popular sell in many countries, Coil width before rolling is 1220mm /1000mm. After rolling product width is 1000mm or 688mm, Material common is GI material, material thickness common between 0.8-1 mm.

acvsdb (10)

Technical parameters
Raw material Galvanized steel
Thickness 1.0-3.0 mm
Roller station 20 or depend on customer' drawing
Shaft diameter 95 mm
Shaft material 45# steel with 0.05mm chrome
Driving way Chain 2 inch
Main power 11 kw * 2
Forming Speed 8-20 m/min
Voltage 380V/50HZ/3PH
Machine weight About 15 ton
Machine color As customer' request
Material Cr 12
acvsdb (11)
acvsdb (12)
acvsdb (13)

Packaging & Logistics

acvsdb (15)
