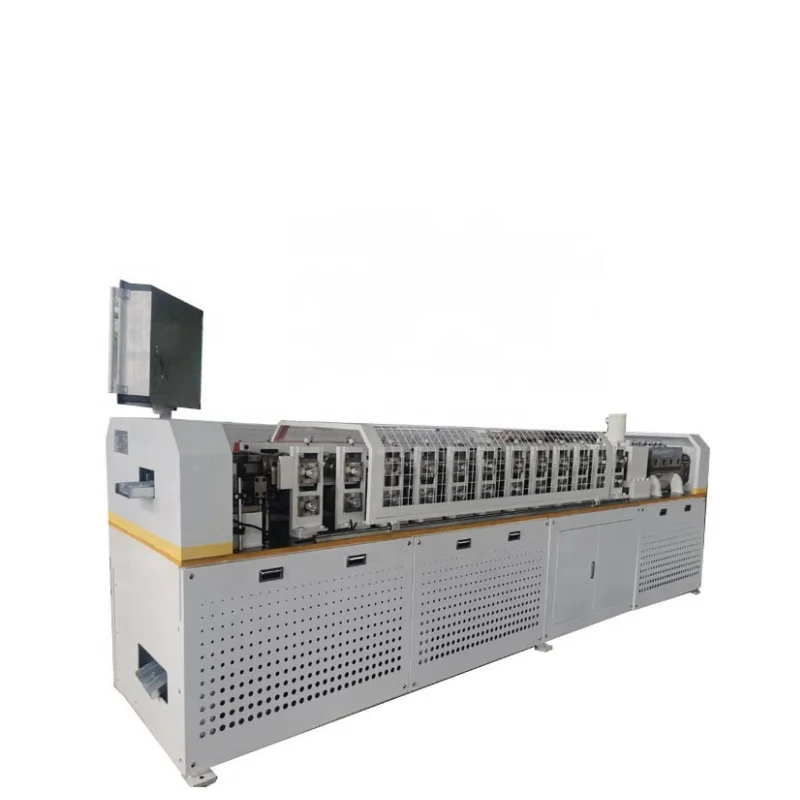

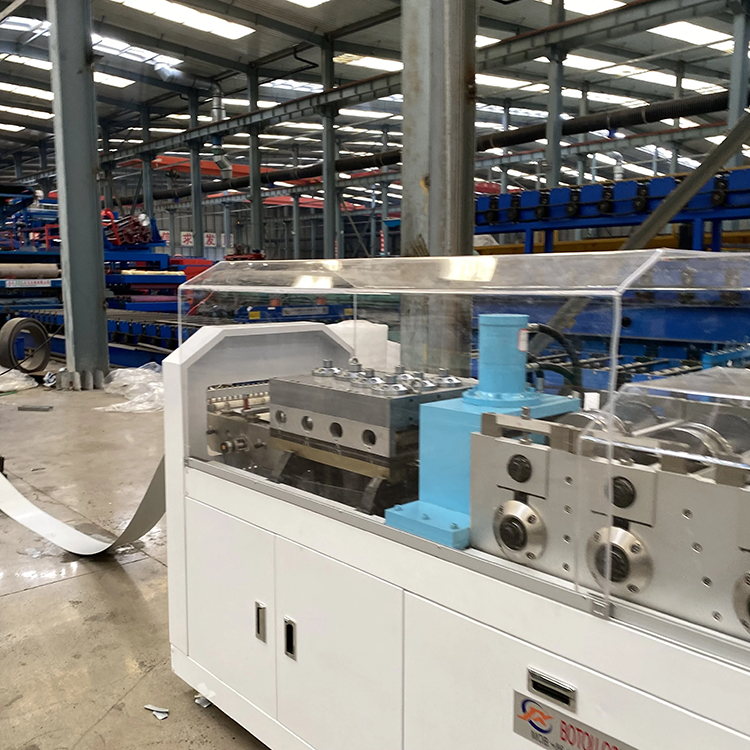

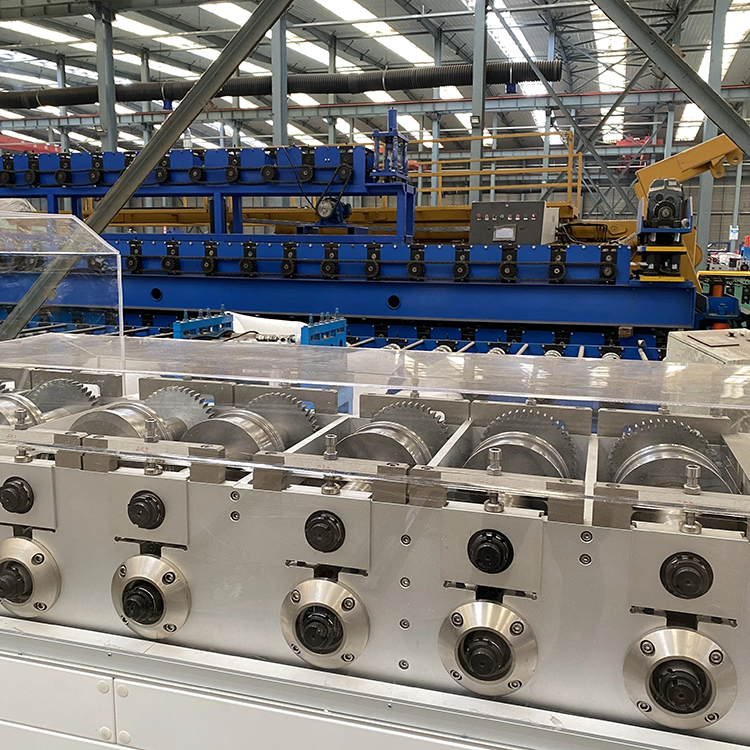

Cold-formed light steel frame house C type winding machine

Short Description:

Light steel keel l purlin machine easy to operate building materials production equipment, the use of advanced technology, can quickly process high-quality l purlin, intelligent control system, easy to operate, no complex programming. Strong equipment stability, sustainable work, improve production efficiency. We also provide customized services and professional technical support and after-sales service

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

Profile Shape	C Shape	Profile Shape
Profile Size	89(90) mm	Profile Size
Material Thickness	0.7-1.2 mm, G300-G550 Zinc-Alum Steel Coil	Material Thickness

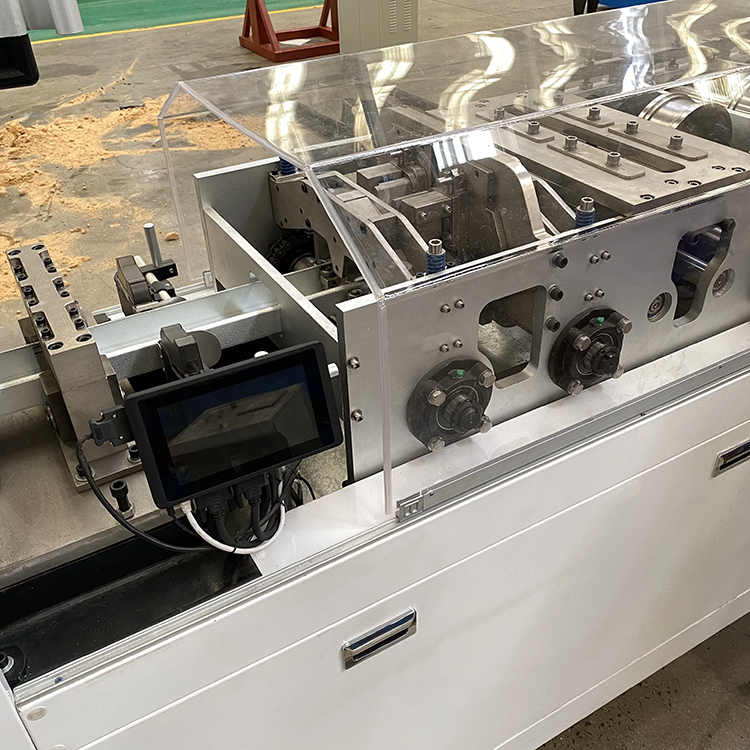

Operation System	17 inches Touchable Screen	Operation System
Production Control System	Self-devoloped FrameMac LGS machine Controlling Software	Production Control System
Design Software	Optional Architectural design software of well-known domestic and foreign brands	Design Software
Standard Machine Speed	300-900 m/h	Standard Machine Speed
Max. Machine Speed	1000 mm/S	Max. Machine Speed
Main Machine Motor Power	7.5 kw	Main Machine Motor Power
Power Supplier	380V, 50Hz, 3Phrases, Customized	Power Supplier
Hydraulic Motor Power	5.5 kw	Hydraulic Motor Power
Total Machine Power	16.5 kw	Total Machine Power
Hydraul Cylinder Volume	120L	Hydraul Cylinder Volume
Constant Temperature Device	Constant Temperature Device is Optional in Alpine Area	Constant Temperature Device
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling	Hydraulic Coolant System
