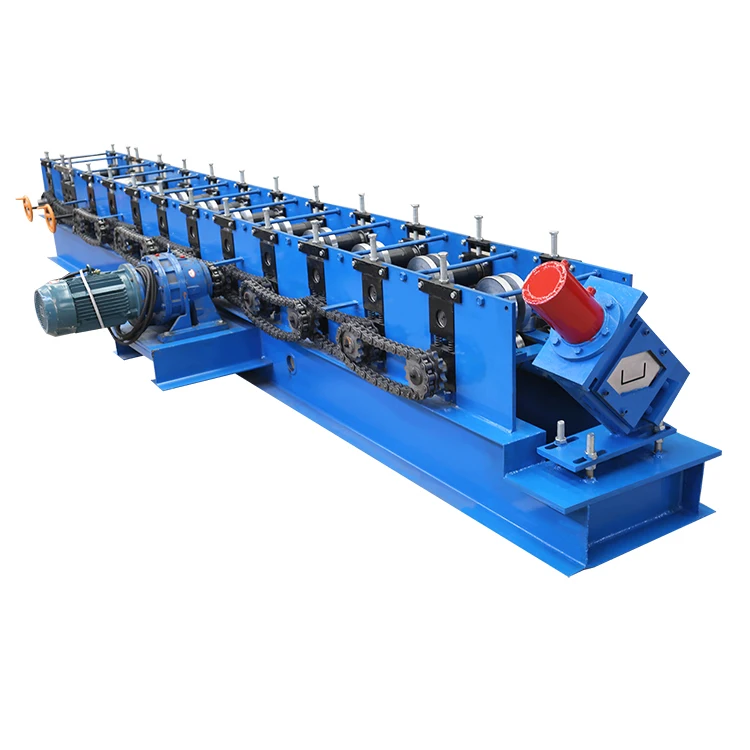

ZKRFM U Purlin Forming Machine U Channel Roll Forming Machine U Profile Roll Forming Machine

Short Description:

1、Hydraulic decoiler:Manual decoiler(will give you as free)
2、Roller station:14rows(As your requirement)
3、Diameter of shaft:50mm solid shaft
4、Material of rollers:45# steel, hard chrome plated on the surface
5、Machine body frame:350 H steel

Product Detail

Product Tags

Product descriptions from the supplier



PRODUCT DESCRIPTION of Fully automatic CZ exchange

Formed Material PPGI,GI,AI Thickness:0.3-0.8mm
Decoiler Hydraulic decoiler Manual decoiler(will give you as free)
Main body Roller station 14rows(As your requirement)
Diameter of shaft 50mm solid shaft
Material of rollers 45# steel, hard chrome plated on the surface
Machine body frame 350 H steel
Drive Double Chain transmission
Dimension(L*W*H) 5X1.2X1.3M
Weight 4.5T
Cutter Automatic cr12mov material, no scratches, no deformation
Power Main Power 5.5+5.5 kw
Voltage 380V 50Hz 3Phase As your requirement
Control system Electric Box Customized(famous brand)
Language English(Support multiple languages)
PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed 0-40m/min The speed depends on the shape of the tile and the thickness of the material.

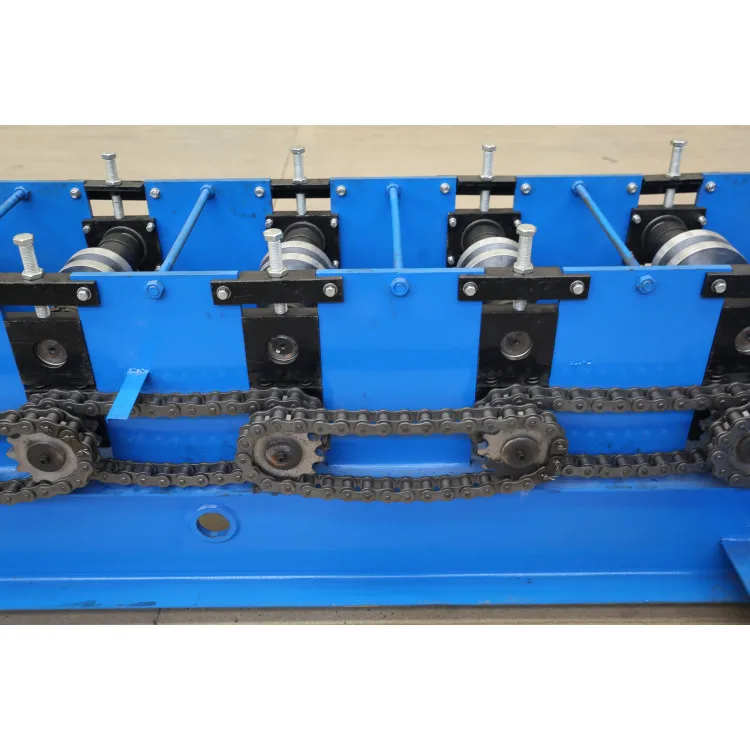

2 1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.

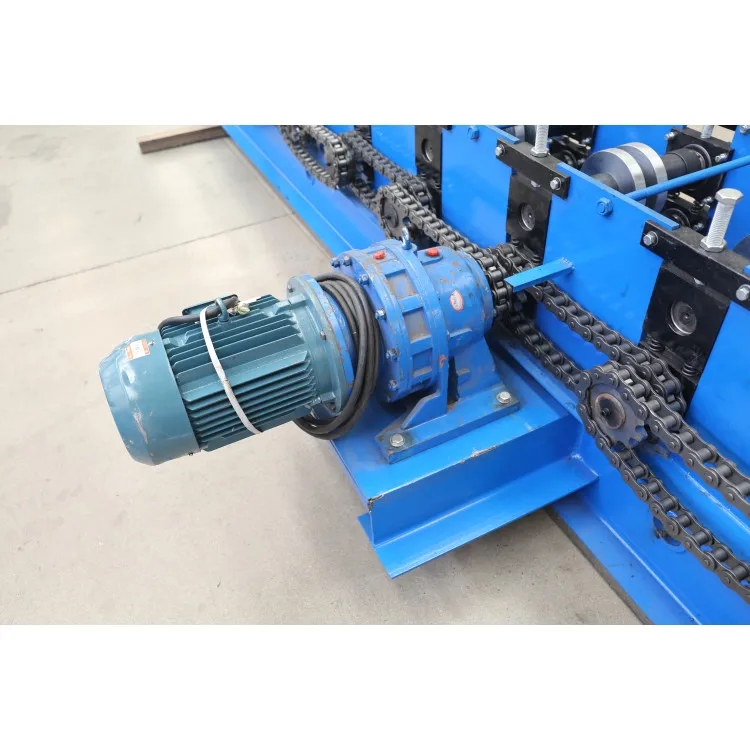

Electric machine

The Electric Machine is an integral component of our roll forming machine, providing precise and efficient power to shape and transform materials, ensuring accuracy and consistency in the manufacturing process.

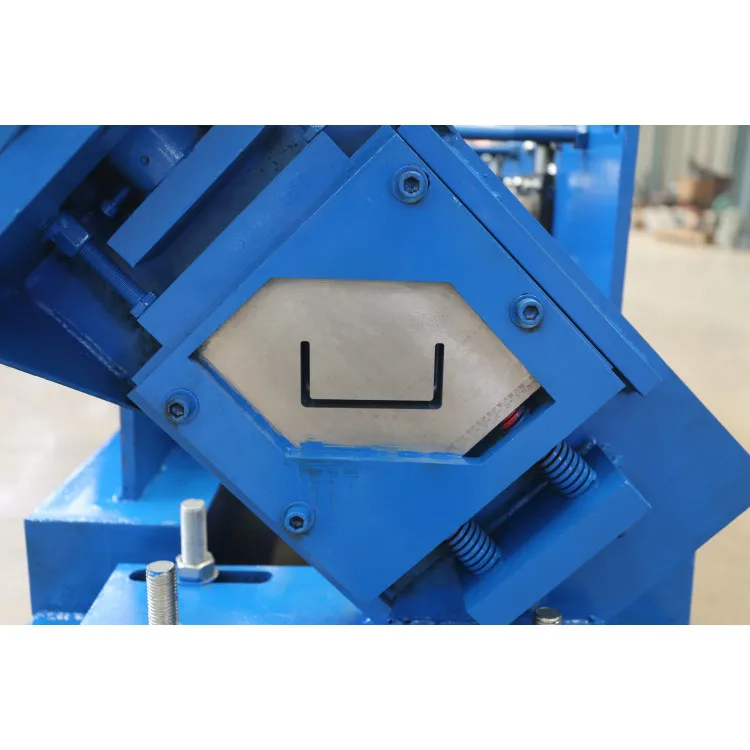

4 Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

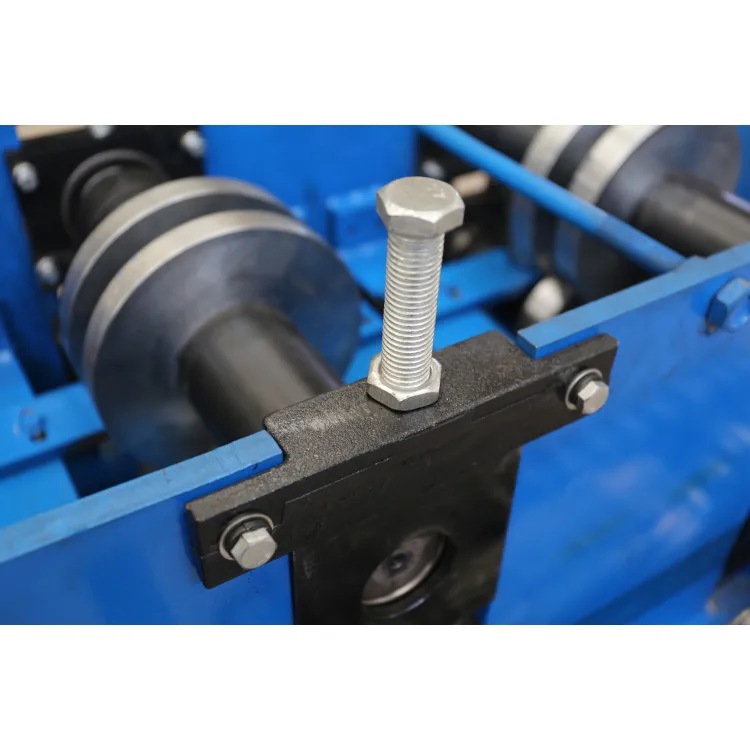

High strength top screws

High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.

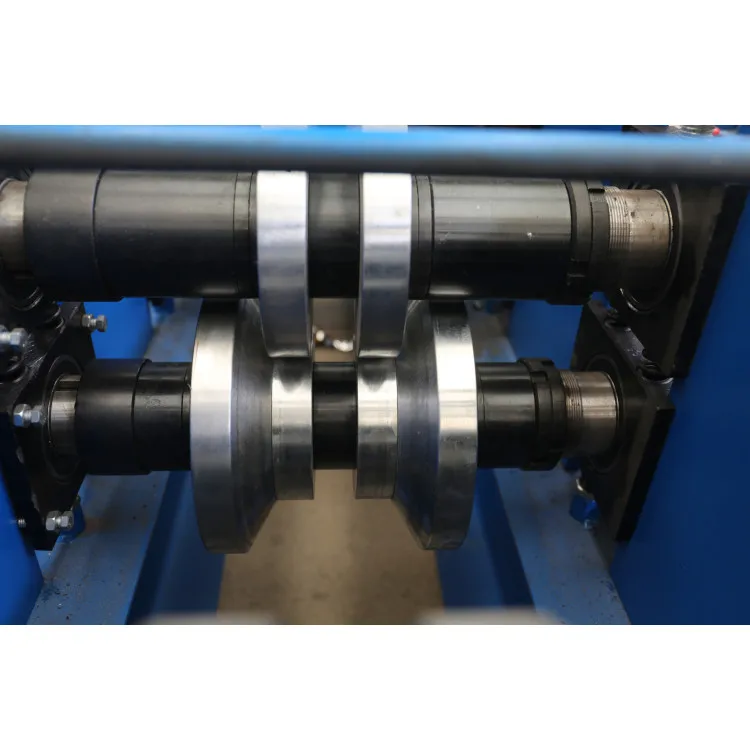

6 Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.






Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!


Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
