ZKRFM Metal Gutter Making Machine Metal Roofing Water Gutter Making Machine Gutter Making Machine

Short Description:

Sink machine equipment is a kind of professional mechanical equipment for manufacturing and processing sinks. It usually consists of the following parts:

1. Cutting device: used to cut raw materials into the required size and shape.

2. Bending device: used to bend the cut material into the shape of a sink.

3. Welding device: used to weld the bent material together to form the overall structure of the sink.

4. Grinding device: used to grind and polish the welded sink to make its surface smooth.

5. Control system: used to control the operation of the entire equipment, including cutting, bending, welding and grinding processes.

The sink machine equipment has the characteristics of high efficiency, accuracy and stability, which can greatly improve the production efficiency and quality of the sink. It is widely used in kitchen equipment manufacturing, bathroom products manufacturing, building decoration and other fields.

With the continuous progress of science and technology, water tank equipment is also constantly upgraded and improved, such as the use of automated control systems, improve processing accuracy, increase multi-function, etc., to meet the needs of different users.

We also provide customized services and professional technical support and after-sales service.

Send email to us

Product Detail

Product Tags

Product descriptions from the supplier

Overview

PRODUCT DESCRIPTION

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)

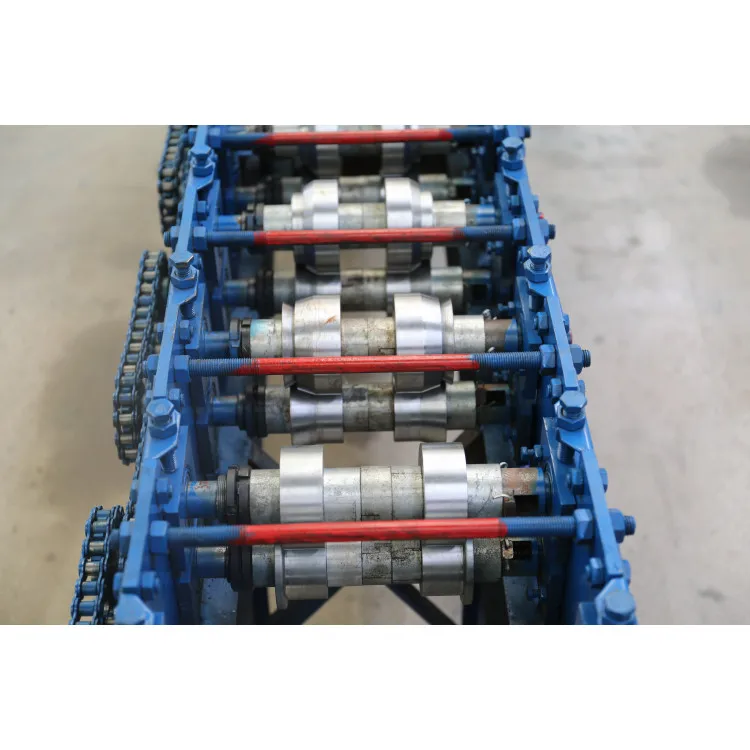

Main body	Roller station	18 rows(As your requirement)
	Diameter of shaft	40mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel

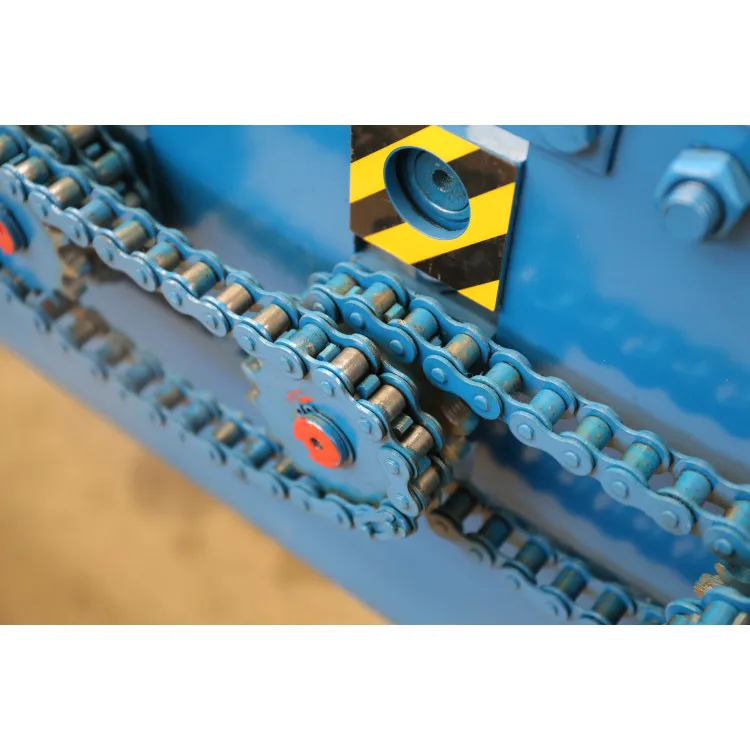

	Drive	Double Chain transmission
	Dimension(LWH)	25008001200mm
	Weight	500 kg

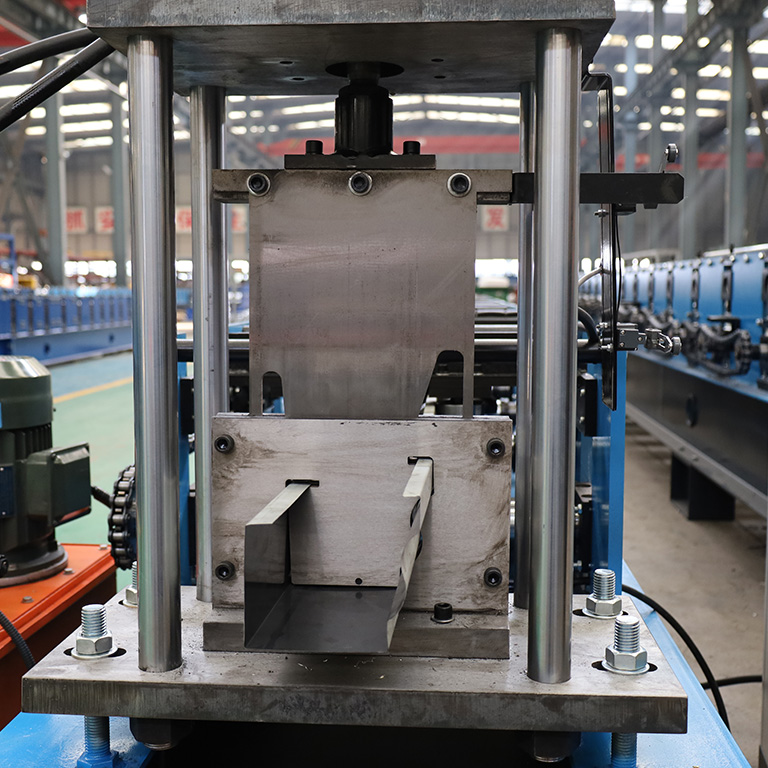

Cutter	Automatic	cr12mov material, no scratches, no deformation

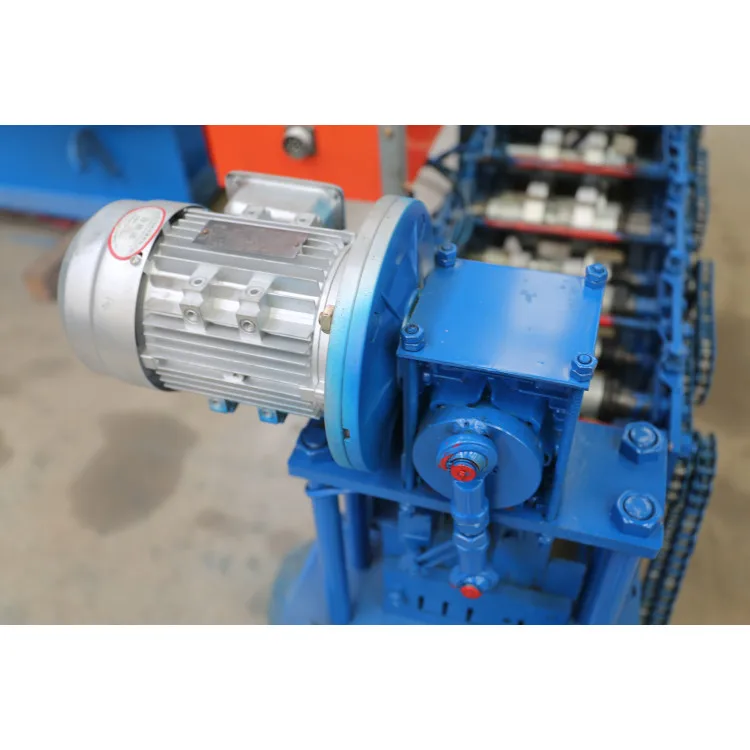

Power	Main Power	3KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-15m/min	The speed depends on the shape of the tile and the thickness of the material.

COMPANY INTRODUCTION

PRODUCT LINE

OUR CUSTOMERS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
