Iron and Aluminum Plate Forming Hydraulic Controller Shearing Machine

Short Description:

High precision hydraulic guillotine shearing machine is a frequently used shearing machine in metal processing industry. Owing to its outstanding productivity and low noise, hydraulic guillotine is increasingly used by metal fabricating industries. In addition, CNC system ensure easy operation and adjustment.

Hydraulic guillotine shearing machines can be divided into different types according to different drive methods. Hydraulic guillotine shear is the most popular shear for its high productivity, excellent capacity and cutting quality. The hydraulic system connects with movable blade and drives it up-and-down motion.

Product Detail

Product Tags

Production Descriprion

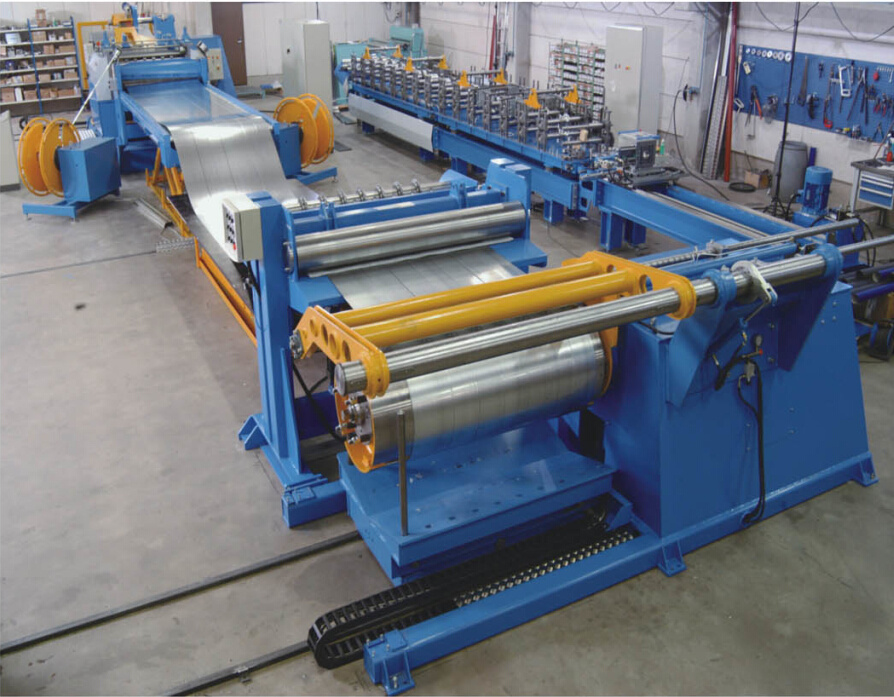

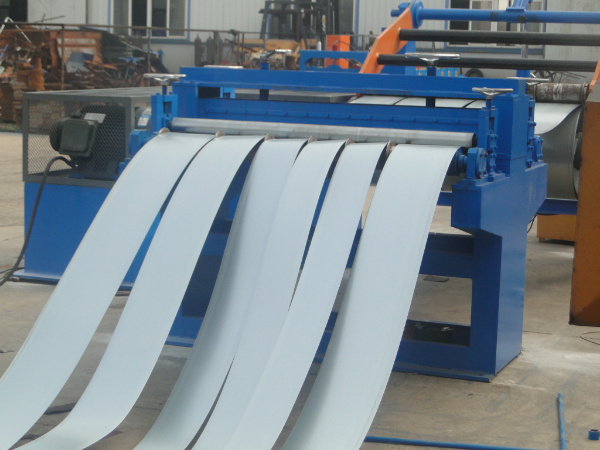

Slitting line is mainly used for slitting and cutting coil materials such as tinplate, galvanized iron, silicon steel sheet, cold
rolled steel strip, stainless steel strip, aluminum strip, and steel strip. It cuts metal coils into strips of various widths, and
then harvests the strips into small coils for use in the next process. It is a necessary equipment for precision cutting of metal strips in the transformer, motor industry and other metal strips.According to the thickness of the slitting plate, it is divided into thin plate slitting line and thick plate slitting line.

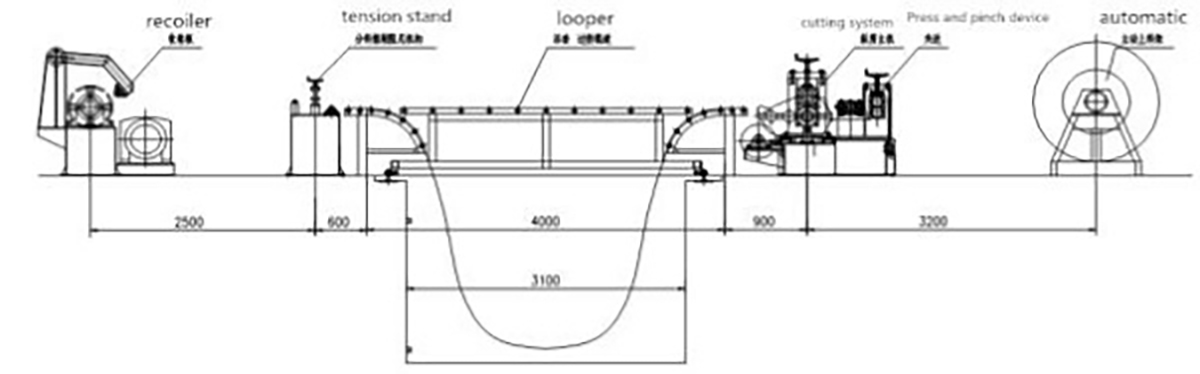

Equipment Structure And Function:

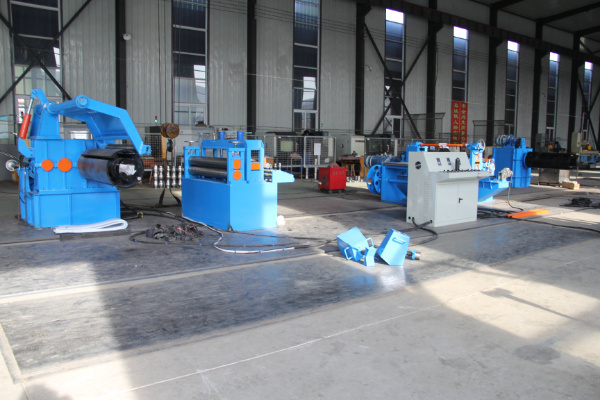

1. Uncoiler: Used To Support The Coil , Bearing 30Tons. By The Support Shaft, Frame And Other Components. Sent To Board The First Artificial Leveling Machine, Leveling Machine Driven By The Coil To Start.
2. Side Guiding: Sheet To Prevent Run-Time Deviation, Both Sides Of The Sheet Width Direction With Vertical Guide Rollers, Guide Roller Frame Fixed To The Respective Sliding Seat, Through The Hand Wheel By The Screw-Nut Fushi Slide In The Lead Column Along The Width Direction, To Accommodate Different Width .
3. 11 Rollers Leveler: Pinch Steel And Steel Plate For Correction. From The Base, Frame, Sliding Seat Rolls, Leveler Rolls 11
(Under 6 On 5 ) , Motor And Other Components To Enhance The Pressure Adjusting Mechanism . By The Motor Drive Gear Reducer, So That The Next Row Of Rollers Are Turning.Adapt To The 2-8mm Thickness, 1800mm Width. Upper Straightening Rolls (5) Electric Lift, Pressure.
4. Cutting: Down To Size After Shear. Mechanical Shears.
5. Materials Sets: Carry On The Plates After Shearing
6. Electric System: System Includes Console , Cabinet.


Working Process


Work Processing

Coil Preparation→Roll-up → Uncoiling → Taking → Pinch→hydraulic shear→loop brige→ rectifying → slitting machine→Scrap Winder→ loop bridge→Tail press→ separate shaft→tension 1#→Tension 2#→press bur rollers →hydraulic shear→Swerve feeding mechanism→ press→recoiling →discharge


1 Material of processible coiled plate: carbon steel , GI
2 Thickness of coiled plate: 0.3-3mm
3 Width of coiled plate: 1250mm
4 Slitting speed:

0-120m/min(0.3-1mm) 0-100m/min(1-2) 0-80m/min(2-3mm)

5 Loading capacity of de-coiler machine (feeding machine): 10T
6 Coil I.D: Φ508mm; Coil O.D: Φ1600mm
7 Knife pivot diameter of slitting :120mm
8 Slitting blade:Φ180Xφ320X15
9 Material of slitting blade:6CrW2Si
10 Precision of slitting: ≤±0.05
11 Recoiler I.D: 508mm
12 The hardness of slitting blade:HRC58°-60°
13 Area of the whole machine:28m(L)x8m(W)
14 Operator needed:1 technician and 2 general workers
15 Weight of the whole machine:40T
16 VoltageL 380V-50HZ-3P. or as required

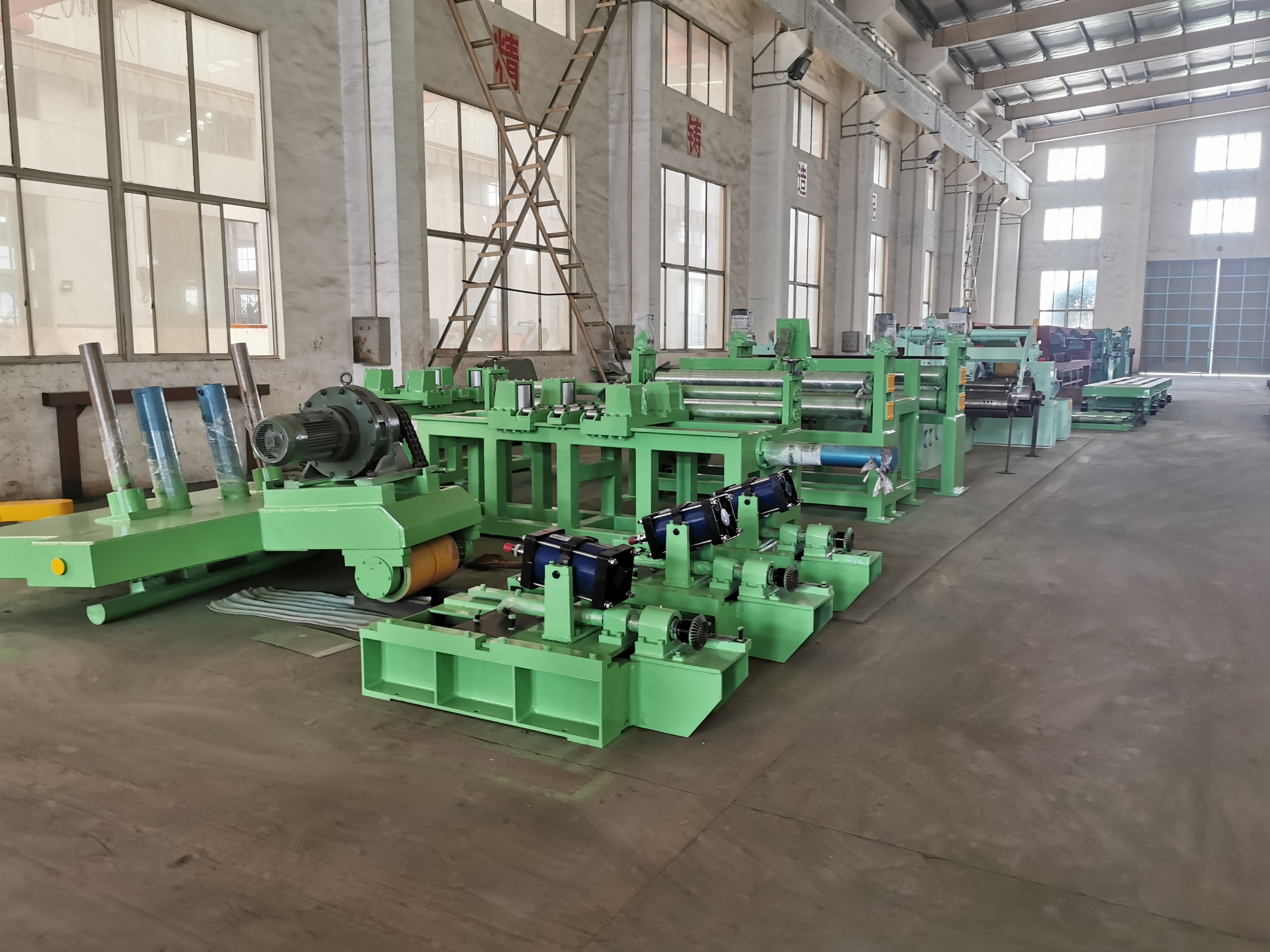

Workshop Overview
