Automatic Change 100-600mm Size C Channel Cable Tray Roll Forming Machine

Short Description:

This machine is used to roll and manufacture cable trays, automate production, improve efficiency, and is suitable for the power industry and construction industry.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Product Detail

Product Tags

acvsdb (1)
No. Item Parameter
1 Coil material 0.3-2.0 mm steel(according to customer's request)
2 Rollers material Gcr15 bearing steel, quenching (HRC55-58)
3 Shaft material 45#forge steel, thermal fining
4 Cutting blade Cr12Mov, heat treatment(HRC58-62°)
5 Driving method by gearbox
6 Working speed 6-12 m/min
7 Dimension about 20*2.0*1.8 m (length*width*height)
8 Weight/ Container about 20T/ two 40'GP


asd (2)
asd (3)
asd (4)

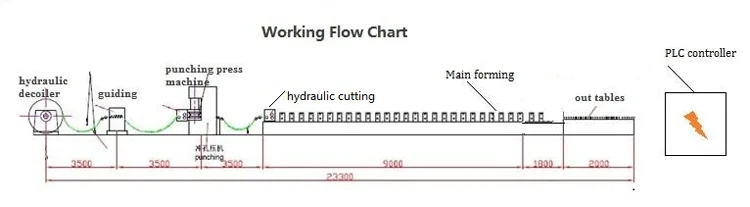

Working process

Decoiler--guiding--punching press--hydraulic cutting--roll forming--out table

No. Component Quantity
1 Decoiler 1 set
2 Guiding 1 set
3 Punching press 1 set
4 Roll forming 1 set
5 Hydraulic cutting 1 set
6 Out table 2 sets
7 Hydraulic station 1 set
8 PLC controller 1 set
9 Spare part&tools 1 box


asd (5)
acvsdb (2)

Product Line

acvsdb (4)
acvsdb (5)

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!

Packaging & Logistics

acvsdb (15)


Q1. Are you trading company or factory?

A1. We’re manufacturer, not just foreign trade company. We have a factory.

Q2. Why is your price higher than other suppliers’?

A2. Our machines use imported brands and domestic first-tier brands with fine workmanship, reasonable design. The price also varies according to different speed and structure.

Q3. Do your machines have good quality?

A3. Definitely yes. We pay high attention to quality. We have many regular customers domestic and abroad. We think only high quality machines will gain long-term cooperation with customers.

Q4. What information customers need to provide if they want to get the quotation?

A4. Customers need to provide us with profile drawing with exact specifications, material, material’s thickness and punching holes.

Q5. Can you make customized profile machines?

A5. Yes, we can design the machines according to customers’ needs

Q6. Do you have after-sales service?

A6. Definitely yes. We’ll provide one year free after-sales service. Even after one year, we can also support you when the machines have problems. We’ll charge only when some spare parts need to be changed.

Q7. How can we trust you can make the machine?

A7. First, we won’t accept the order if we can’t make the machine. We’ll lose than customers if we fail. Second, all our machines need to be checked before delivery. Customers can arrange their friend or the inspection service to come to our factory to inspect the machine.
