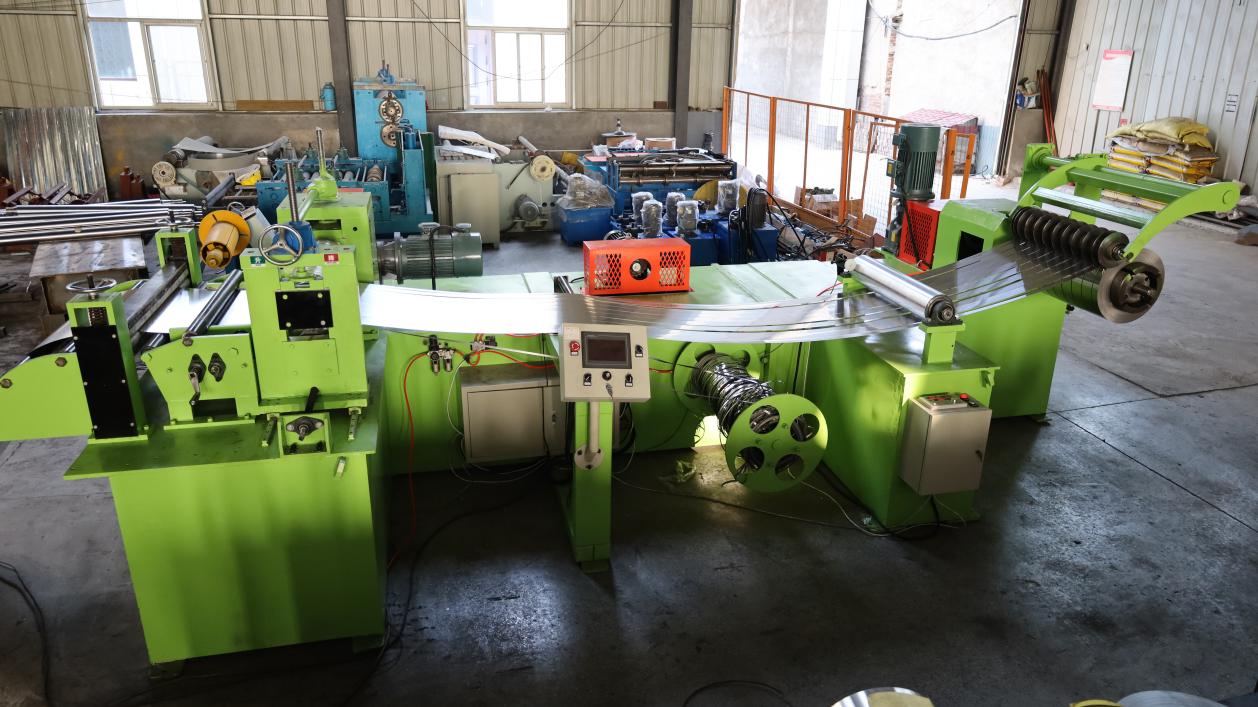

Fully Automatic Slitting making Roll Forming Machine

Solar Photovoltaic Roll Forming Machine

Automatic slitter can cut any width of the profile to achieve your desired width.

Support customization, happy to respond to your questions and orders.

Product Detail

Technical parameters
Video outgoing-inspection	Provided
Cutting Width (mm)	1000 - 2000 mm
Material Thickness(mm)	0.4 - 6 mm
Trademark	ZHONGKE MACHINERY
Cutting Speed(m/min)	30 - 80 mm
Material Type	PPGL,PPGI
Material of Shaft	45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system	Chain
Motor power of hydraulic station	5.5KW
Voltage	380V 50Hz 3phases
Material of cutting blade	Cr12Mov , quenching process
